Visit Rolls Royce to evaluate customer requirements. Design and manufacture Boroscope Bogies to drawings number 2012-11-9685.

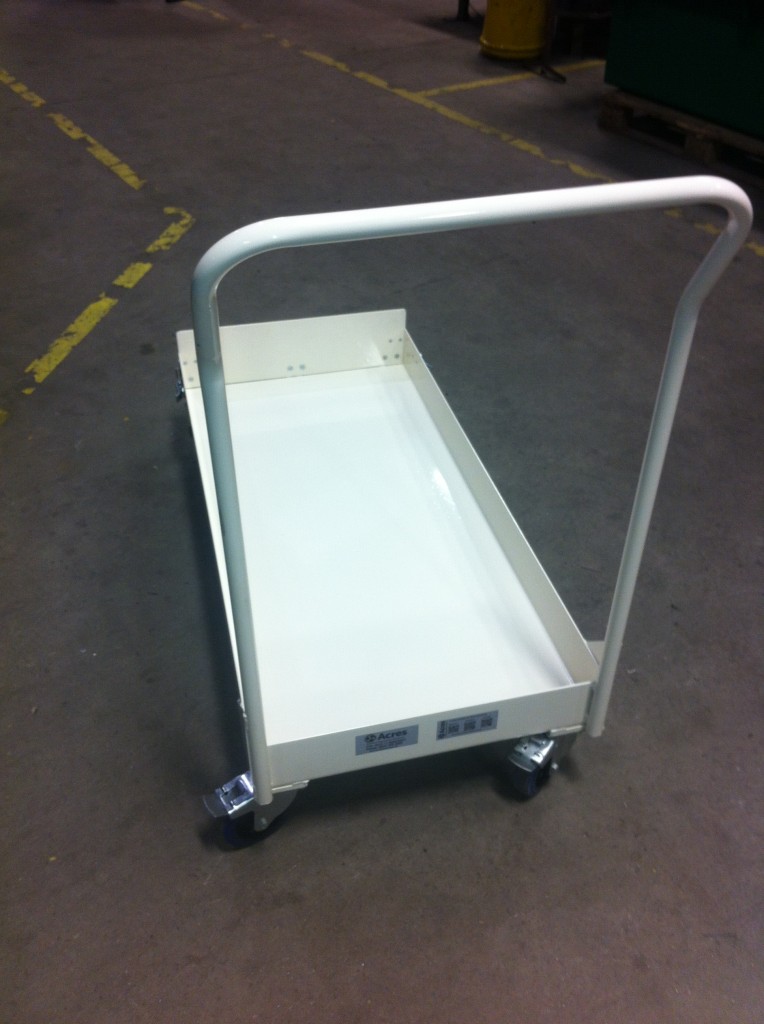

The Bogie is designed to carry the Boroscope cabinets Ref 2009-09-6311 and feature a hinged drop down ramp to allow the cabinet to be pushed onto the work platform. It will be manufactured from 3mm mild steel formed plate for the main body of the bogie and fitted with 2 off 125mm swivel and braked castors and 2 off fixed castors to maneuverer it into position and lock it in place. It will also have a handle from 25mm round tube at the opposite end to the ramp.
Approximate overall size – 1200mm (L) x 600mm (W) x 200mm (H).
