Rotating Pallets

We recently completed and delivered two of the 7 bespoke rotating pallets. Each unit has been designed specifically to take differing tooling items.

The rotating pallets have been designed for a local midlands based aerospace client to suit aerospace machine tools used in the build process of gas turbine engines. The design enables the client to safely store and access the machine tools.

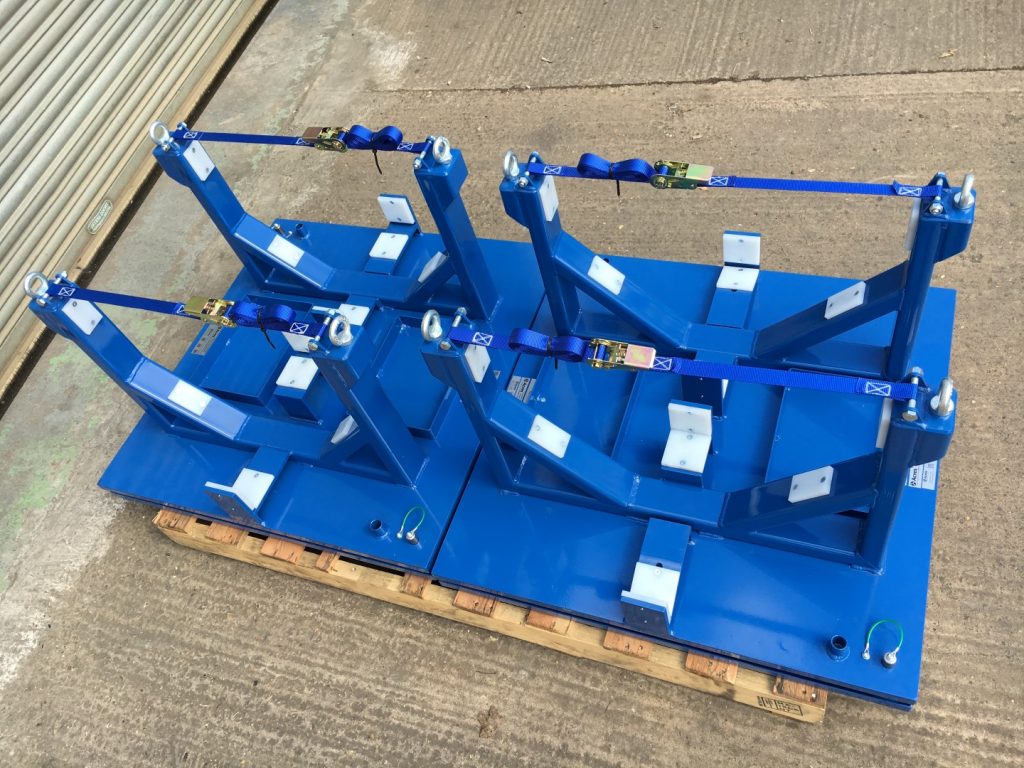

The base of the pallet features a turntable ring allowing the top section to rotate 180 degrees. This provides easy access to the tooling while taking up a smaller work area. To lock it in position index pins will drop into a hole on the base section of the turntable ring. White Nylon pads cover all contact areas to prevent any metal to metal contact. Ratchet straps secure the tooling to the pallet.

Pallet A: will be designed specifically to suit two machine tools.
Approximate overall size – 900mm (W) x 900mm (L) x 450mm (H) Not including tooling.

Pallet B: will be designed specifically to suit two machine tools.
Approximate overall size – 900mm (W) x 900mm (L) x 450mm (H) Not including tooling.

ID labels have been included detailing the location of each individual tool.

Tool trays have also been included on the pallets top to store the necessary tools that correspond with the machine tooling items.

The unit has been powder coated in Blue BS 4800 20 D 45 to provide a high quality, durable finish that will ensure product longevity.

Rotating Pallets Drawing Ref: AD-957-2016-01 – AD-963-2016-01

Total Quantity Required: 7 bespoke units
