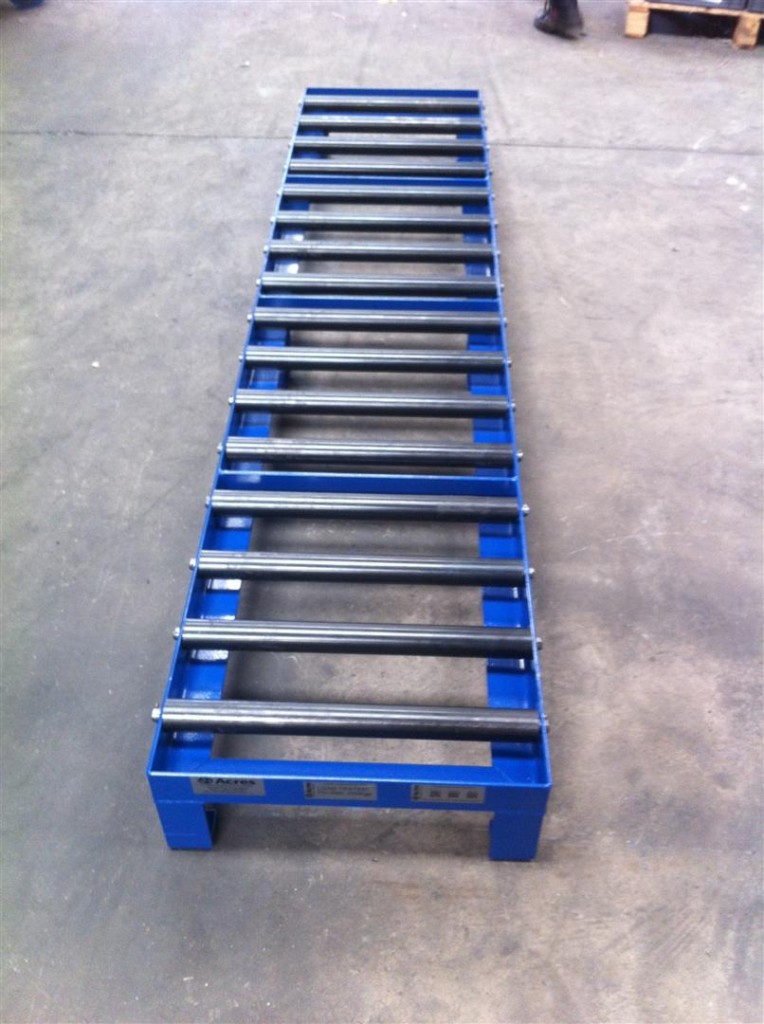

AD-227-2013-08 – Oven Roller Bed
AD-227-2013-08 – Oven Roller Bed
The roller bed will enable operators to easily load parts in to the oven reducing the risk of accidents. It will be fabricated from 70mm x 70mm angle and have 48.3mm diameter x 520mm wide rollers with high temperature (up…
Read More
The roller bed will enable operators to easily load parts in to the oven reducing the risk of accidents. It will be fabricated from 70mm x 70mm angle and have 48.3mm diameter x 520mm wide rollers with high temperature (up to 250 degrees C) ball bearings fitted. It will feature adjustable feet to set the height the same as the 2 off existing beds.
Approximate overall size 2450 mm (L) x 550mm (W) x 250mm (H).
Load tested to 200kg SWL
