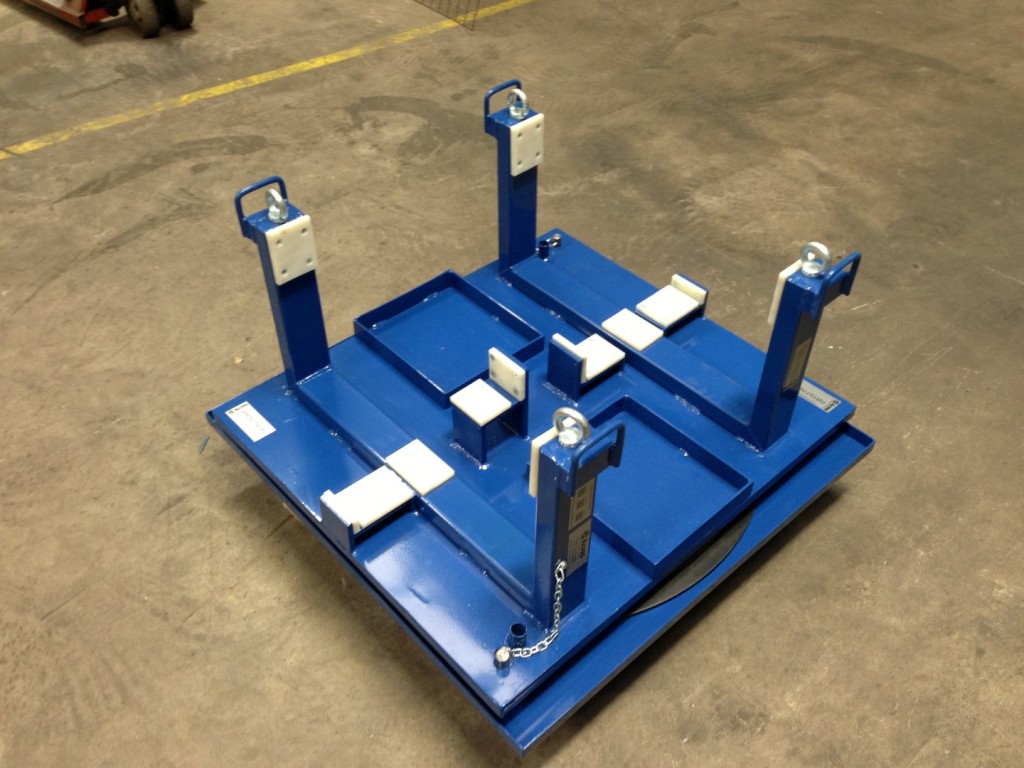

AD-233-2013-08 – XWB-97K Backup Pallet


Trent XWB Storage Pallet Design.

This pallet is designed specifically to suit machine tools. It consists of ID labels and tool trays. The base of the pallet features a turntable ring allowing the top section to rotate 180 degrees. To lock it in position index pins drop into a hole on the base section of the turntable ring.

Approximate overall size – 900mm (W) x 900mm (L) x 450mm (H) Not including tooling.
