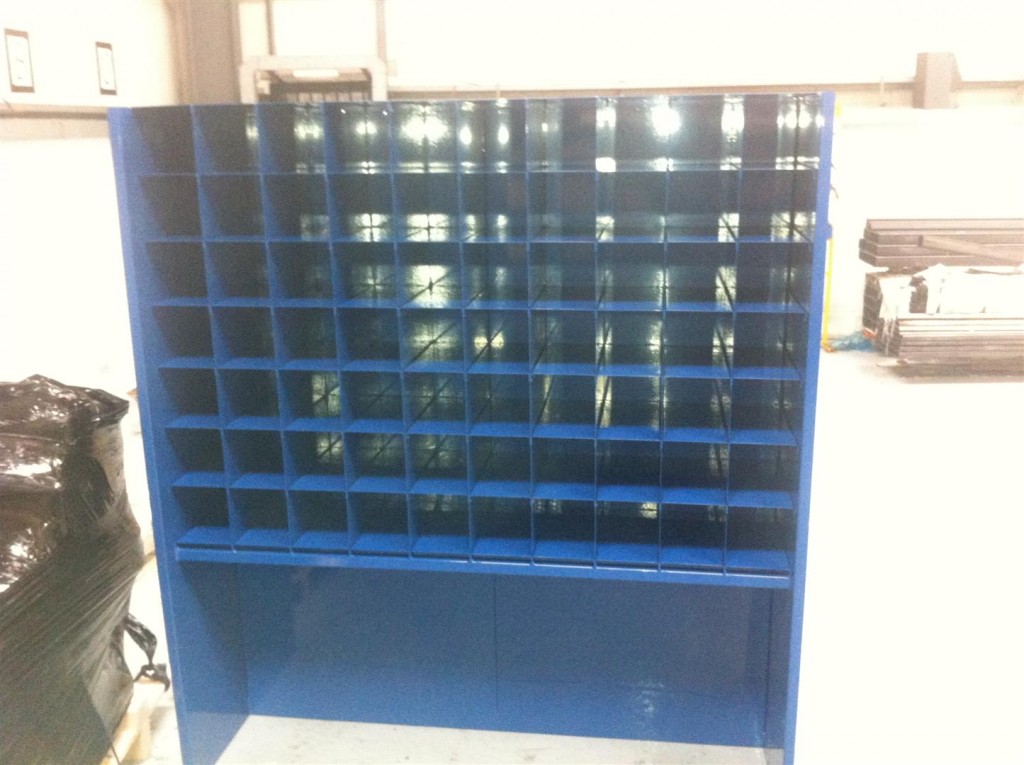

AD-57-2013-01 – Tooling Fixture Rack
AD-57-2013-01 – Tooling Fixture Rack
Design and manufacture Tooling Fixture Rack for Wet Process area. The rack will be design to efficiently store the tooling for the wash machines, allowing easy access to the parts being stored. It will be manufactured from 1.5mm mild steel…
Read More
Design and manufacture Tooling Fixture Rack for Wet Process area.
The rack will be design to efficiently store the tooling for the wash machines, allowing easy access to the parts being stored.
It will be manufactured from 1.5mm mild steel CR sheet which will be formed on a CNC press to give strength and rigidity to the overall assembly.
Approximate overall size – 1060mm (H) x 1570mm (W) x 430mm (D) holding up to 60 off parts.
