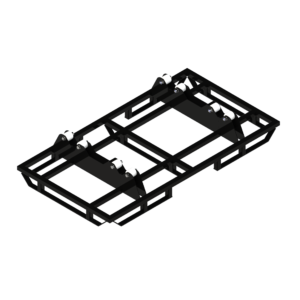

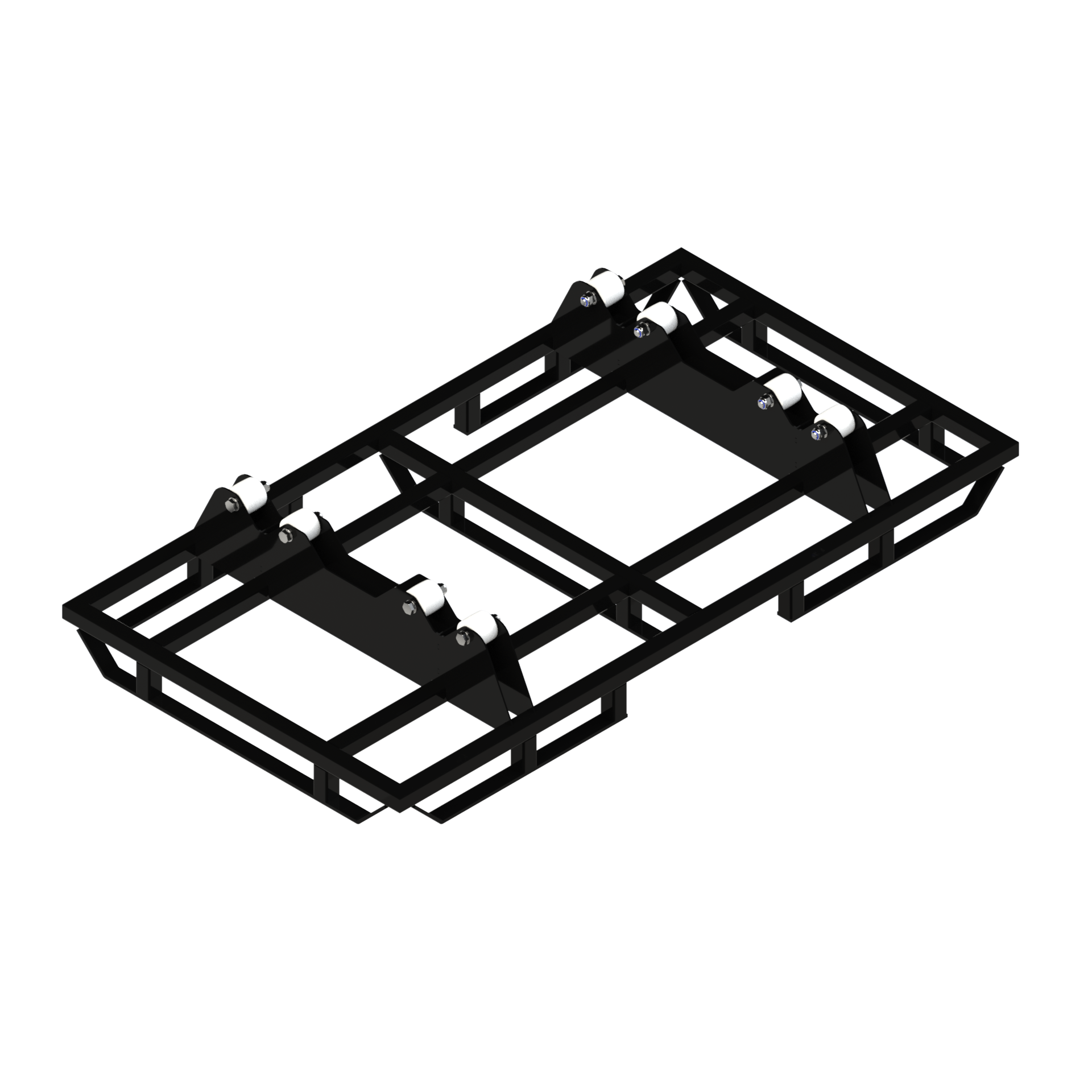

Axle Shaft Support Pallets

Scope:

Axle Shaft Support Pallets are designed to securely hold and support 2 axle shafts during transportation, handling, and assembly. These pallets prioritise part protection, operator safety, and ease of use.

Solution:

Project REF: AD-2818-2025-03-1 / 13151-P1

Key Features:

Main frame: Fabricated from robust box section steel for superior strength and longevity.

Accessibility: Designed with forklift truck (FLT) and pallet truck access for easy handling and mobility.

Support Sections: Top face equipped with nylon rollers to:

Protect axle shafts from surface damage.

Allow shafts to be easily rotated while positioned on the pallet.

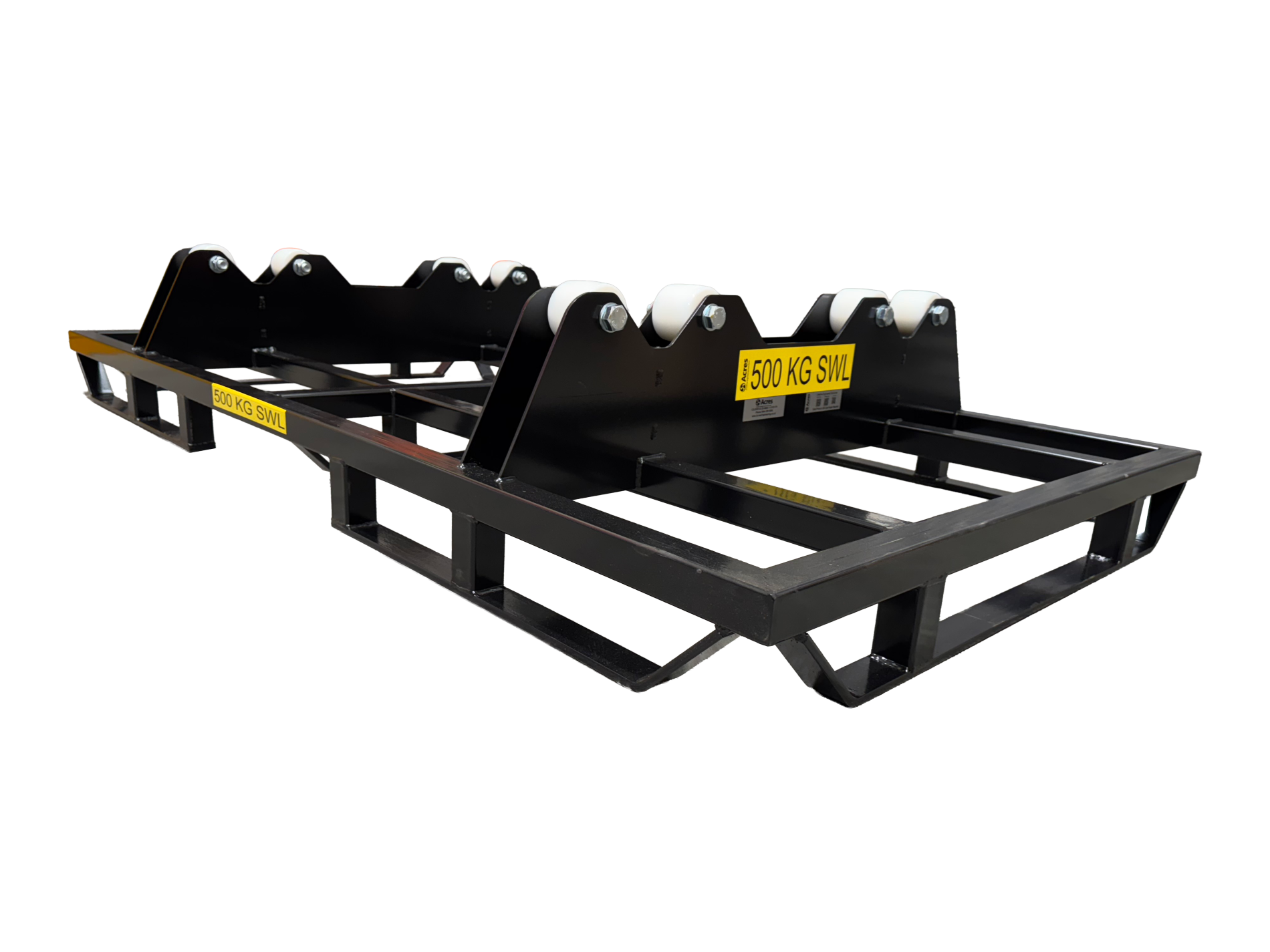

Load Capacity: Safe Working Load (SWL) of 500 kg per pallet.

Part Accommodation: Designed to securely locate and support shafts with an outer diameter (OD) of 175 mm.

Finish: Durable powder-coated surface for enhanced protection against wear and corrosion. RAL 9005 Black

Dimensions: Approximately 2200mm (Width) x 1200mm (Depth) x 400mm (Height).

————————————–

Acres have a range of standard products but also support clients with custom machinery and medium-high volume products such as trolleys, stillages etc.

We have manufactured lots of different tables / workstations / workbenches for various industries.

We also manufacture access platforms, jigs and fixtures and many other types of production support solutions / products.

Talk to us today about your requirements: [email protected] / 01332695240 / Contact Us Form
