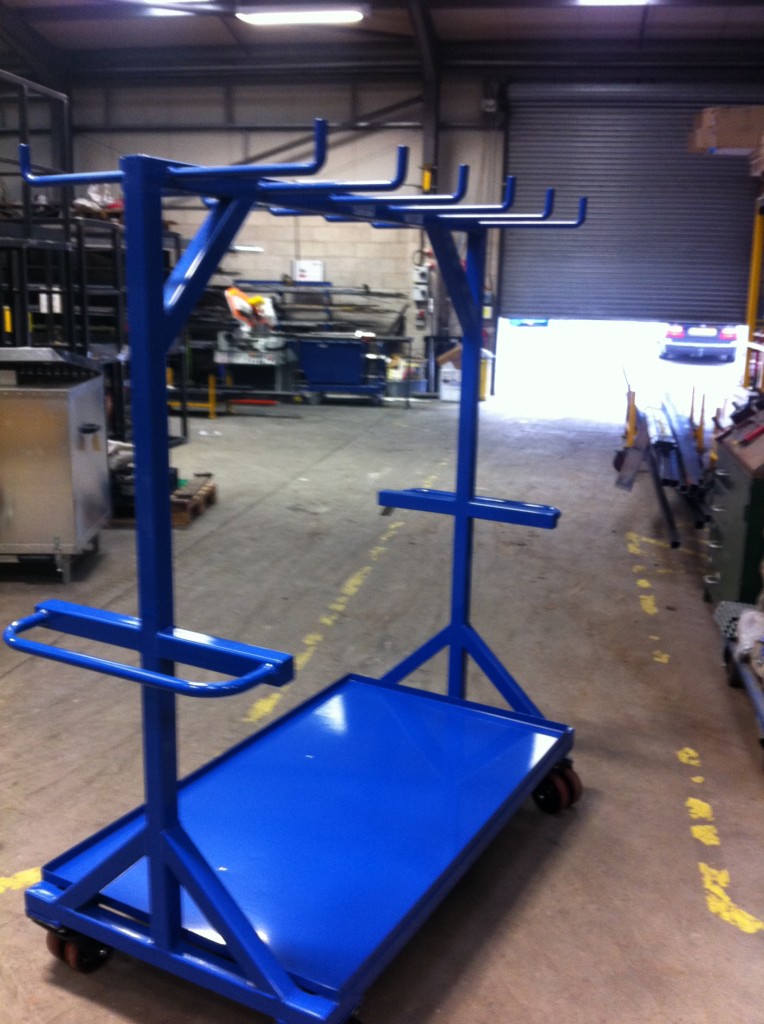

Produce CAD drawings and manufacture C9 Sling and Lifting Equipment Trolley to drawing number AD-20-2012-12 Rev 1
The Trolley will be fabricated from 50mm x 50mm box section with 20mm formed solid round bar for the hanging hooks to locate the slings and lifting chains. A 3mm tray will sit in the base of the trolley to allow smaller parts to be stored and not fall off when it is being manoeuvred.
It will also feature a 25mm tubular handle at each end of the trolley. It will be fitted with 4 off double 125mm swivel castors and powder coated to give a hard wearing durable finish.
Approximate overall size 1800mm (H) x 1500mm (L) x 800mm (W).
