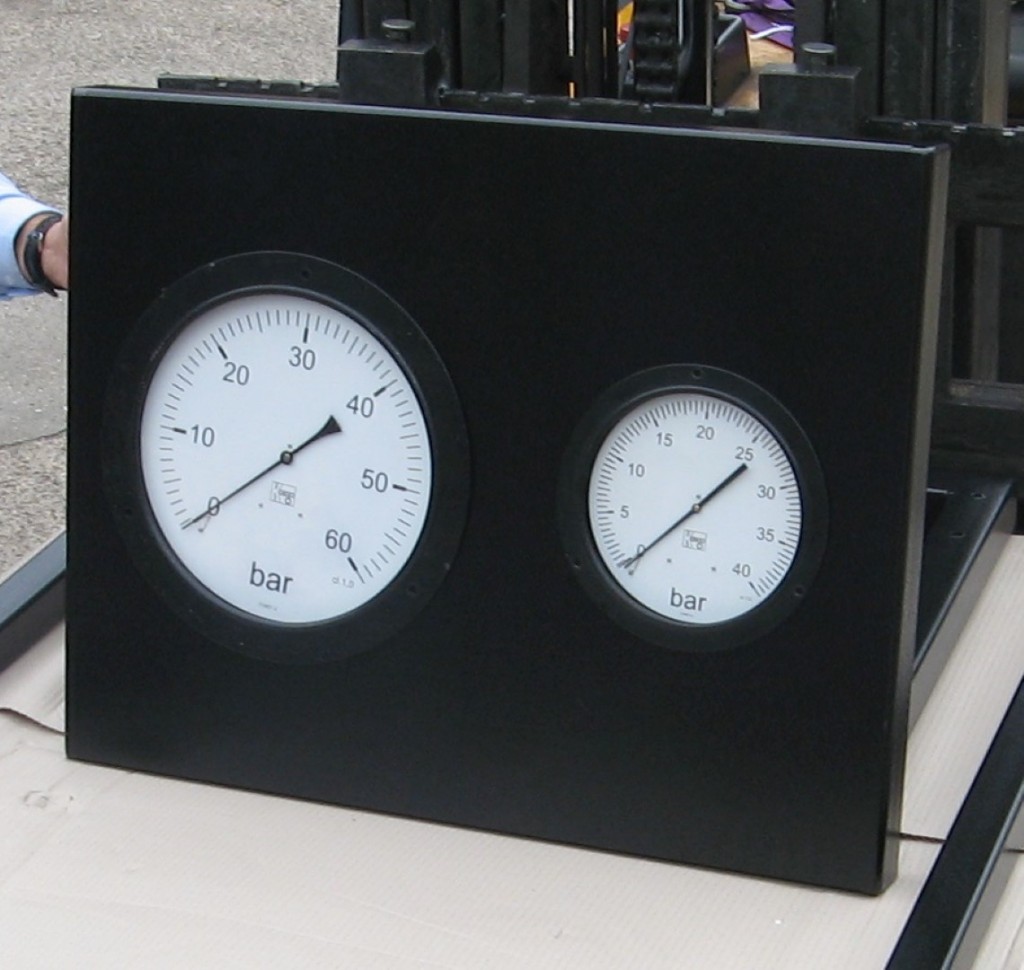

The dial mounting frame has been designed for a UK based energy company to hold two off dials with the aim to deliver better visibility of the dials to workers on the shop floor.
The dial mounting frame has been manufactured from 60mm box section, with the dials being mounted in a 3mm steel plate. Each dial is fixed to the plate with bolts through holes on the dials.
The frame will fix to the existing flooring and features a supporting bar so that the vibration from sources such as machinery is reduced.
Approximate size of the frame with be: 750mm (L) x 500mm (W) x 60mm (D)
Acres Reference: AD-491-2014-07
