HDPE Plastic Drawer Unit

Drawing Number: AD-54-2013-01


HDPE Plastic Drawer Unit

Scope of work:

Manufacture A Frame HDPE Drawer Unit to AD-54-2013-01.rev 3

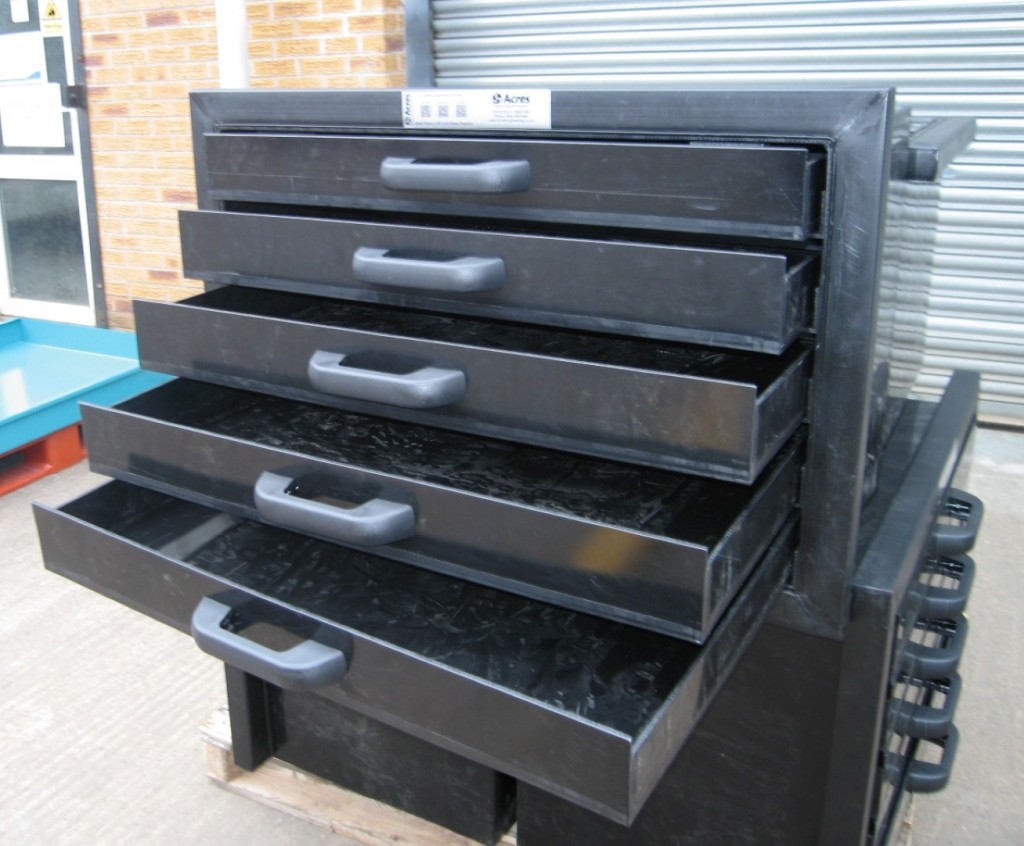

The drawer unit is manufactured from heavy duty 6mm HD Polyethylene. It has been fitted with framework made from 40mm x 40mm x 4mm HDPE box section. This is in accordance with customer requirements allowing the unit to be mounted onto an A frame.

The unit features 5 off drawers also made from HDPE. Each drawer is fitted with plastic D handles.

Approximate overall size – 830mm (W) x 500mm (D) x 535 (H)
