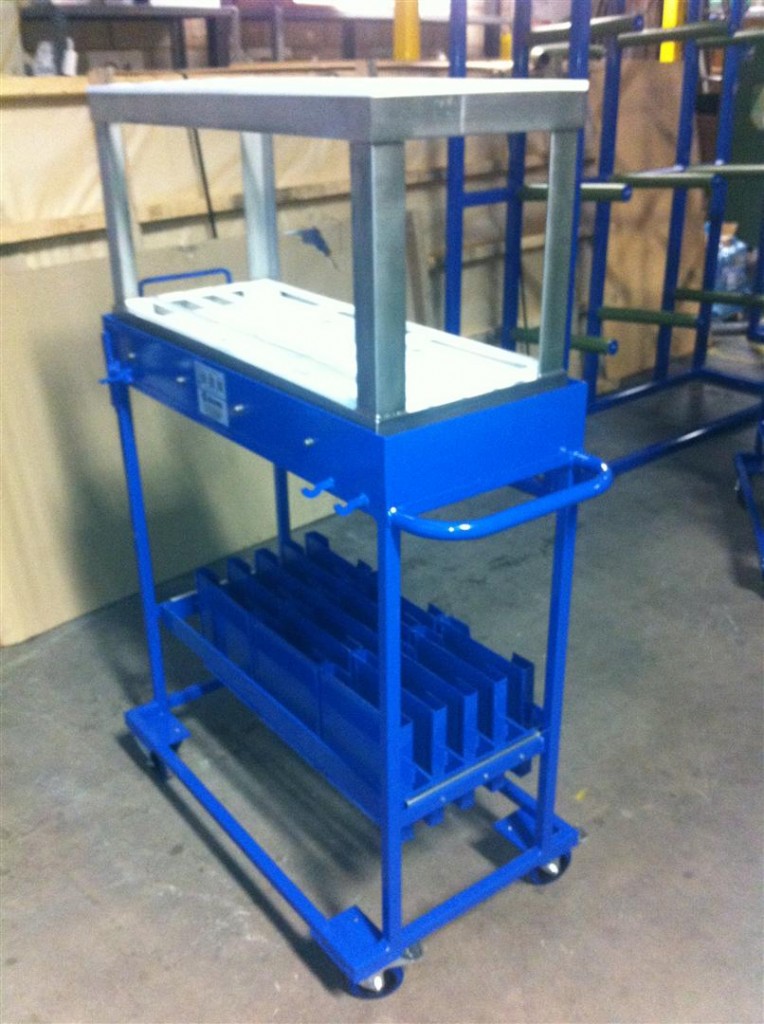

Oven Document Card Kanban Trolley and Oven Fixture System
Scope of work:
Design and manufacture a Kanban Trolley and Oven Fixture System.
The system will consist of a Document Card Kanban Trolley and Oven Fixture, the oven fixture will hold 15 off vanes inside a PTFE support grid, this will sit on roller bed within the document card trolley, under the roller bed will be 15off document pockets which will correspond with the relevant vane in the oven fixture. The roller bed will allow the oven fixture to be easily loaded into the oven. To withstand the temperature of the oven it will be fabricated from 304 stainless steel and PTFE. The trolley will be mild steel and powder coated to give a hardwearing durable finish.
Approximate overall size of the trolley and fixture combined – 905mm (L) x 530mm (W) x 1500mm (H).
Ref: 2012-09-9559
