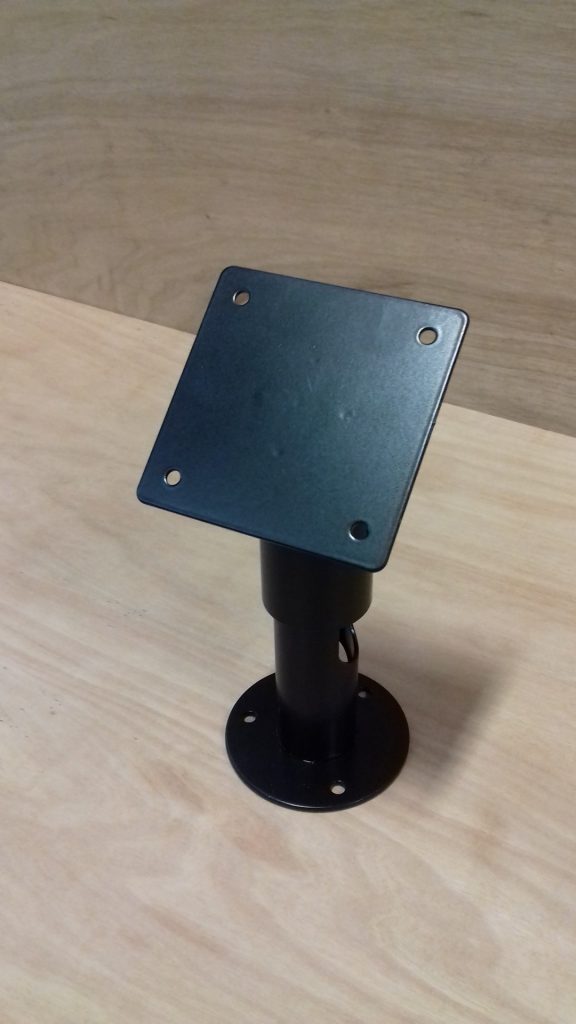

Monitor Pole – REF 2017-02-13342
The Monitor Pole has been designed to securely store a 10″ Samsung LED monitor to provide a POS solution within a major electronics manufacturers store. The solution will be installed in stores across the country.
The units feature 3 main parts- The lower base section, fabricated from 38.1mm OD x 2mm wall tube with laser cut slots for rotation and a 3mm 90 mm diameter base plate.
The upper section, fabricated from 48.3mm OD x 3mm wall tube with an internal nylon insert to prevent the upper section tube rubbing on the lower section.
The Monitor mount plate, fabricated from 2mm CR4 plate 75mm x 75mm square with 4 off 6mm mounting holes.
The monitor pole has been powder coat finished in black to give a hard wearing durable finish.
Approximate overall dimensions: 90mm (L) x 100mm (W) x 200mm (H)
Acres Drawing Number: AD-1239-2017-02
Quantity required: 54 off
