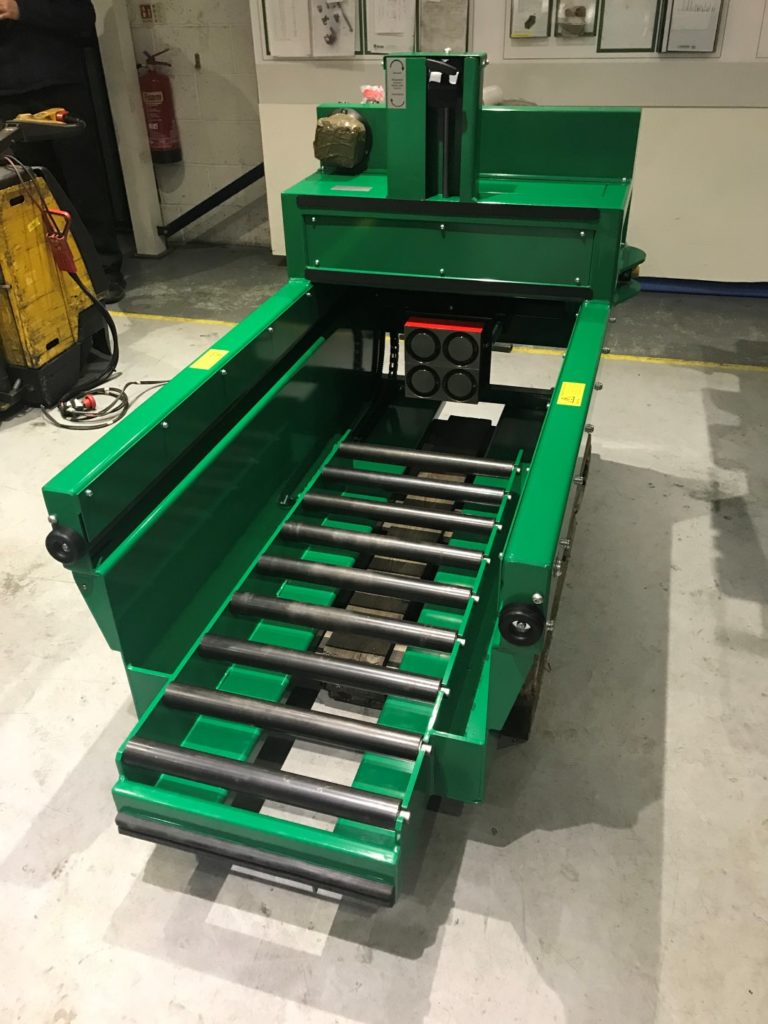

PU 1250 x 650 With Magnet Extension

PU 1250 x 650 With Magnet Extension

As part of an ongoing relationship with Hoppecke Batterien, Acres regularly produce a number of bespoke fork truck battery changer units to suit customer requirements. Our product has improved incrementally over the years giving our designers and fabricators a wealth of experience to tackle almost any request.

The Acres PU 1250 x 650 With Magnet Extension machine is fixed to a PPT (Powered Pallet Truck) providing a fast and efficient mobile battery changing solution for around the clock warehouse operations.  The PU is powered by a hydraulic power pack which, in partnership with a pair of powerful magnets exchanges batteries between fork trucks and battery charging racks.

Acres are currently exporting custom machines to Germany, France, Belgium, Spain, Poland, Holland, Slovakia, Abu Dhabi, Dubai, South Africa and China as well as serving the UK.

Design Scope:

This bespoke design features a 1250mm x 650mm bed. This design also features a laser guide to assist the operator with levelling the bed and speed up the exchange process.

Destination:
Hoppecke Spain

Battery Details:

Battery 1 = Dimensions: 1220mm (L) x 496mm (W) x 784mm (H)
Roll take off height:  250mm

Optional Extras:

Laser pointer
Rear exit magnets

All labels are in Spanish
Colour Specification = RAL 6029 Green

PPT Details:

Type = Unknown
Fork Length = 1150mm
Fork Spread = 560mm
Fork Width = 165mm
Total Lift = 120mm

Note: Acres can only set the minimum roll off
height the maximum is determined by the
lift range on the PPT, note that on some
heavy batteries the PPT may relax (yield)
by up to 13mm.
