Removable fan guard

Scope:

We designed and manufactured a removable industrial fan guard for our customer to enhance safety but be quickly removable for maintenance. The guard serves as a critical protective barrier, preventing accidental contact with the moving parts, which significantly reduces the risk of injury to personnel or damage to other equipment.

Additionally, the custom design was tailored to fit the specific dimensions and operational requirements of the customer’s equipment, ensuring optimal airflow without compromising protection, but allowing quick access without the need for special tools should it be required.

We also designed and manufactured a pulley / belt guard for the same customer.

Solution:

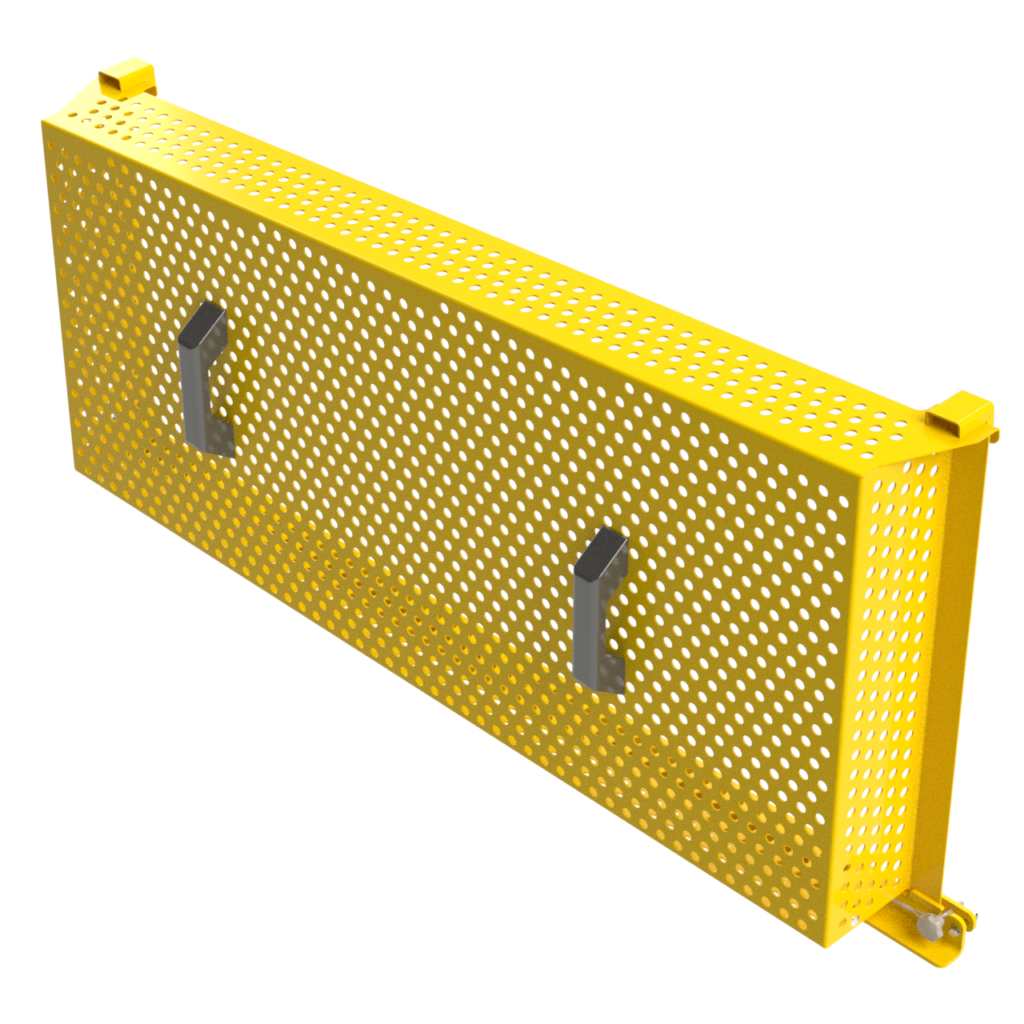

Manufacture fan guard from 2mm mild steel with the following features:

• 2 removable D handles,
• 3 x 4 lobe star knob handles,

Functionality, the guard can be quickly removed by removing the star knob handles to allow access for maintenance.
This is a rigid, fixed, fan guard.

Project REF: AD-2543-2024-06-1 / 12666-P1

Key Benefits of the Industrial Fan Guard

1. Enhanced Safety
   Prevents accidental contact with rotating fan blades, reducing the risk of injury to personnel and ensuring a safer work environment.

2. Regulatory Compliance
   Helps meet workplace health and safety standards by adhering to industry regulations for machinery guarding.

3. Custom Fit & Compatibility
   Designed specifically to match the customer’s equipment, ensuring easy installation and seamless integration without disrupting airflow or performance.

4. Durable & Long-Lasting
   Manufactured with high-quality, corrosion-resistant materials to withstand harsh industrial environments and minimise maintenance needs.

5. Operational Efficiency
   Maintains optimal airflow while providing protection, ensuring the fan continues to operate effectively and efficiently.

6. Equipment Protection
   Shields the fan blades and motor from external objects or debris, helping to prevent damage and reduce downtime.

Types of Similar Guards that we can make:

1. Machine Guards

• Purpose: Protect operators from moving parts in machinery (gears, belts, pulleys, etc.)

• Types:

  • Fixed Guards – Permanent barriers; simple and effective.

  • Interlocked Guards – Shut off machine power when opened.

  • Adjustable Guards – Can be repositioned for different tasks.

  • Self-Adjusting Guards – Automatically adjust to the material being processed.

2. Belt & Pulley Guards

• Purpose: Cover belts and pulleys to prevent entanglement or contact.

• Common in: Motors, conveyor systems, compressors.

3. Fan Guards (Variations)

• Wire Mesh Guards – Lightweight and allow airflow; common for smaller fans.

• Solid Panel Guards – Used where extra protection from debris or fluids is needed.

• Inlet/Outlet Guards – Placed on the intake or exhaust side of fans to prevent foreign objects from entering or exiting.

4. Motor Guards

• Purpose: Shield motors from external impact, dust, and moisture.

• Includes: Enclosures, hoods, or cages.

5. Ventilation Grilles

• Purpose: Allow airflow while preventing contact with internal components.

• Common in: HVAC systems, electronics, server racks.

6. Finger Guards / Safety Screens

• Purpose: Specifically designed to prevent finger access to hazardous areas.

• Applications: Often used on small machinery or portable tools.

Acres have a range of standard products but also support clients with custom machinery and medium-high volume products such as trolleys, stillages etc.

We have manufactured lots of different tables / workstations / workbenches for various industries.

We also manufacture access platforms, jigs and fixtures and many other types of production support solutions / products.
