The support fixture trolley has been designed to assist in the manufacture of gas turbine engines for a large midlands based OEM within the aerospace sector.
Scope of work:
Produce Support Fixture Trolley for fixture.
The trolley will be used to store and safely manoeuvre the Support Fixture used in the manufacture of turbine engines. The Fixture will be located in a vertical orientation to keep the footprint of the unit to minimum while still allowing access via crane.

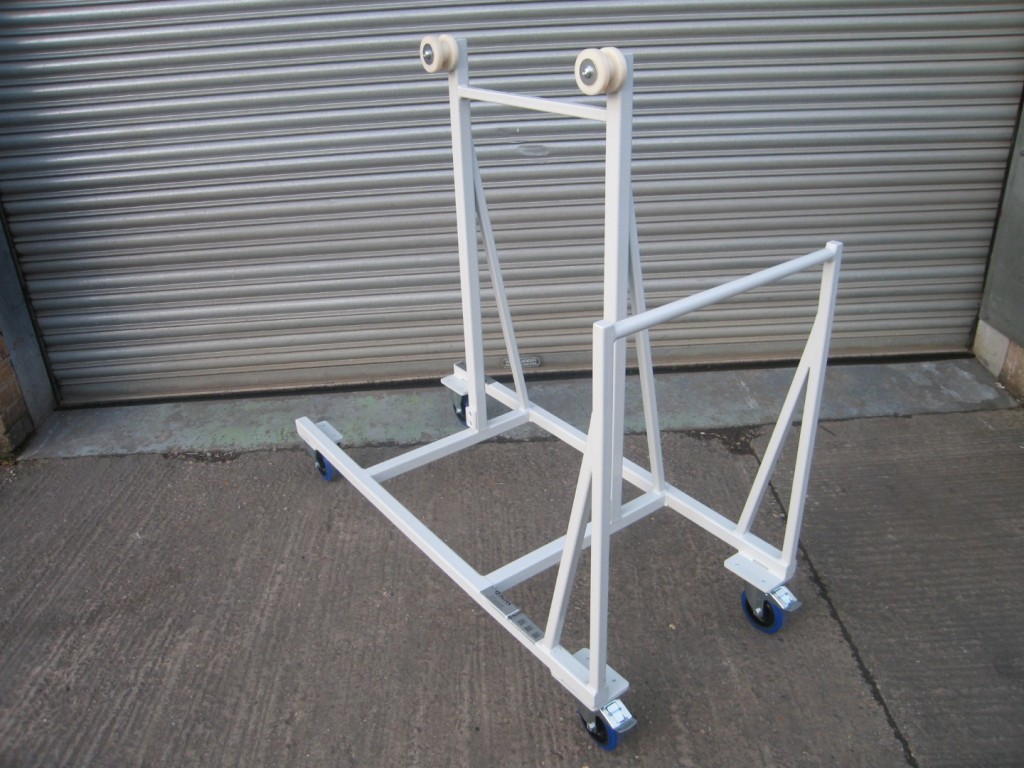

The trolley has been manufactured from 40mm Square hollow box section for the main frame with nylon support disks to locate and hold the Support Fixture. The design is assembled with 4 off 125mm swivel and braked castors with non-marking elastic tyred castors. A handle positioned at 950mm from the ground, manufactured from 25mm circular hollow section has also been included to assist with manoeuvrability. Finally, a powder coat has been applied to provide a hard wearing finish.
Approximate overall size of trolley 1400mm (L) x 600mm (W) x 1000mm (H)
Acres Drawing Number: AD-633-2015-02
