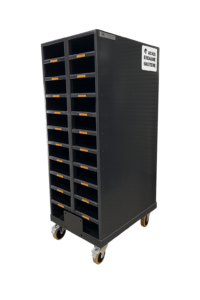

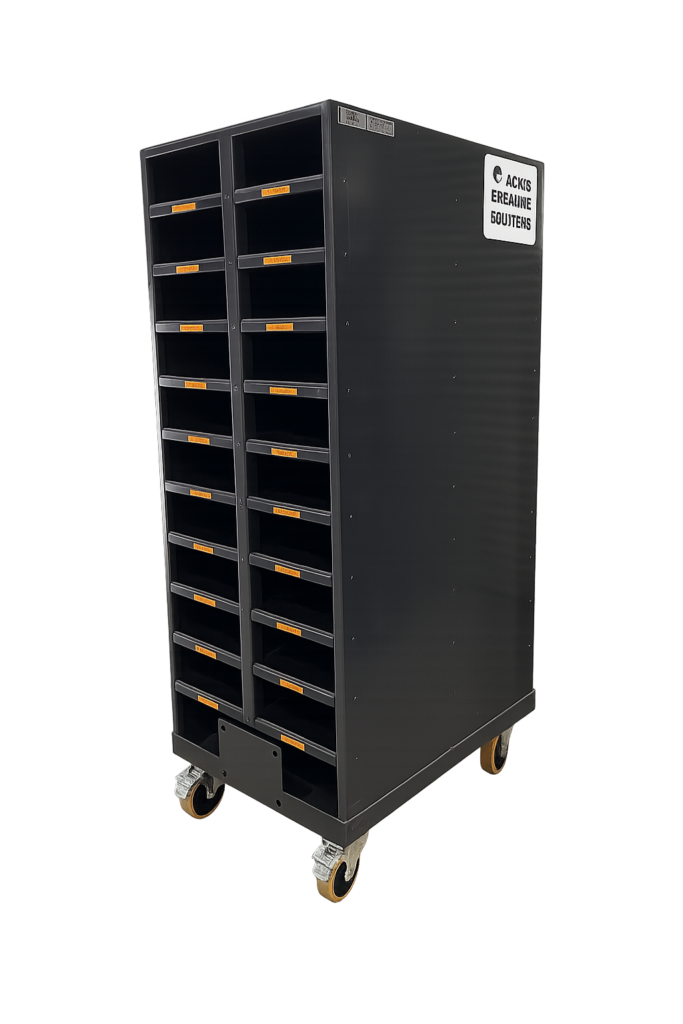

Ultra-Heavy duty storage racks

Drawing Number: AD-2806-2025-03-1

Our customer asked us for a rack solution that allows different sized plates at various stages of manufacture to be stored



Our customer asked us for a rack solution that allows different sized plates at various stages of manufacture to be stored and quickly selected for efficiency in the production process reducing time and overall build costs.

Rack Configuration:

Standard-sized racks featuring two columns of 10 pigeonholes (20 pigeonholes per rack)

– Box-section frame with plywood shelves (to support load requirements)

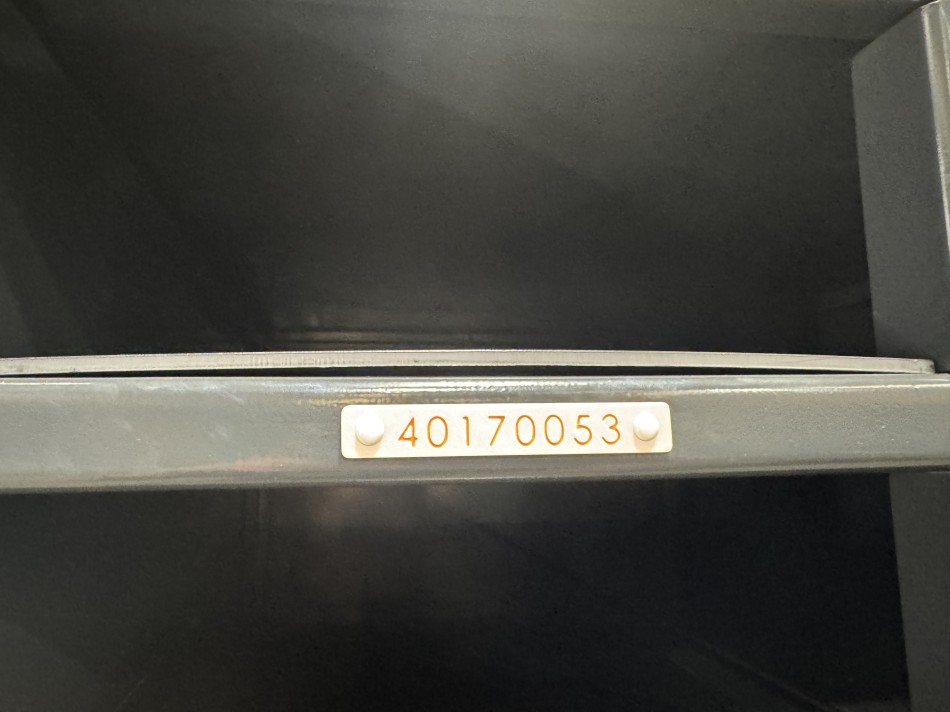

– ID plates on each pigeon hole.
– 4 off castors per unit

Load Capacity:

SWL per pigeonhole: ~70kg

SWL per rack: 1500kg

Finish – All racks powder-coated in RAL – 7021 Black Grey

Box section frame with sheet metal outer panels

The durability and low maintenance requirements of these pigeon hole racks make them a cost-effective solution over time. They reduce the need for frequent storage upgrades or replacements, leading to long-term savings.

These also feature 3D Printed numbered tags per shelf



Project REF: AD-2806-2025-03-1 / 13146-P1

————————————–
