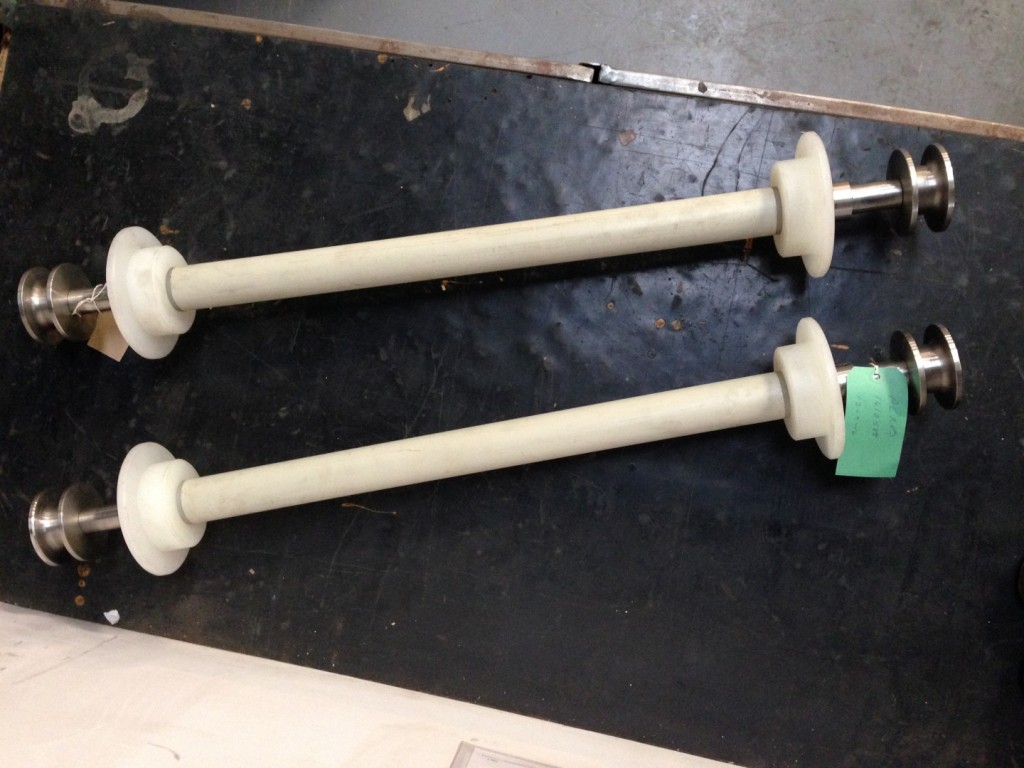

Universal Lifting Bar XPE 1302 Design
The Universal Lifting Bar is designed to handle different size rotor parts for a wash process giving more versatility to the operators.
The main support bar is manufactured from 30mm 304 stainless steel round with machined collars and washers to locate the 2 off Polypropylene fixture discs. Between the discs is a Polypropylene shroud tube to cover the support bar and prevent metal to metal contact. It features grooved lifting bosses bolted to each end of the main support bar to link up with a twin hook beam lifter.
Approximate overall size- 1000mm (L) x 150mm (Dia)
Acres Reference – AD-335-2013-12-1
