TXWB 03 Kitting Module

Drawing Number: AD-312-2013-11


TXWB 03 Kitting Module Design.

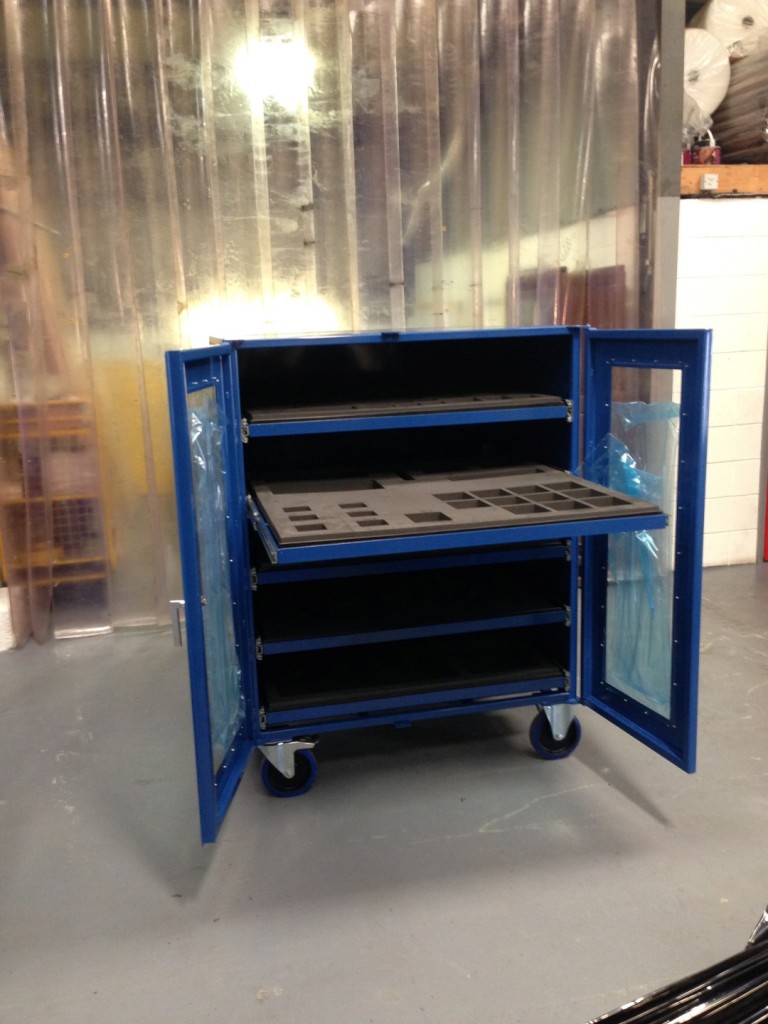

The role of the TXWB 03 Kitting Module is to eliminate all cardboard parts packaging before parts are sent to the build line. Each module features 5 off extendable drawers which locate plastic trays with foam inserts. The inserts have CNC machined cut outs to house the parts. This reduces the risk of metal to metal contact of the parts.

The units have 2 off doors which open back flat against the sides and are fitted with mild steel outer panels to protect the parts within. It has been assembled with 200mm diameter castors, 2 off fixed and 2 off swivel with total lock brakes.

The module has been powder coat finished in BS 4800 20-D-45 Blue to give a hard wearing durable finish. Approximate overall size – 1604mm (H) x 1200mm (W) x 1200mm (D).

Acres Reference – AD312-2013-11
