04 HP Case Pallet

Drawing Number: AD-51-2013-01


04 HP Case Pallet – REF 2017-05-13636

The 04 HP Case Pallet has been designed and manufactured for a Midlands based aerospace company to carry engine cases.

The base frame of the pallets have been fabricated from 50mm x 50mm PE300 plastic extruded profile with the top section and side supports from 10mm thick PE300 sheet. The Pallets will be plastic welded together and have no metal parts.

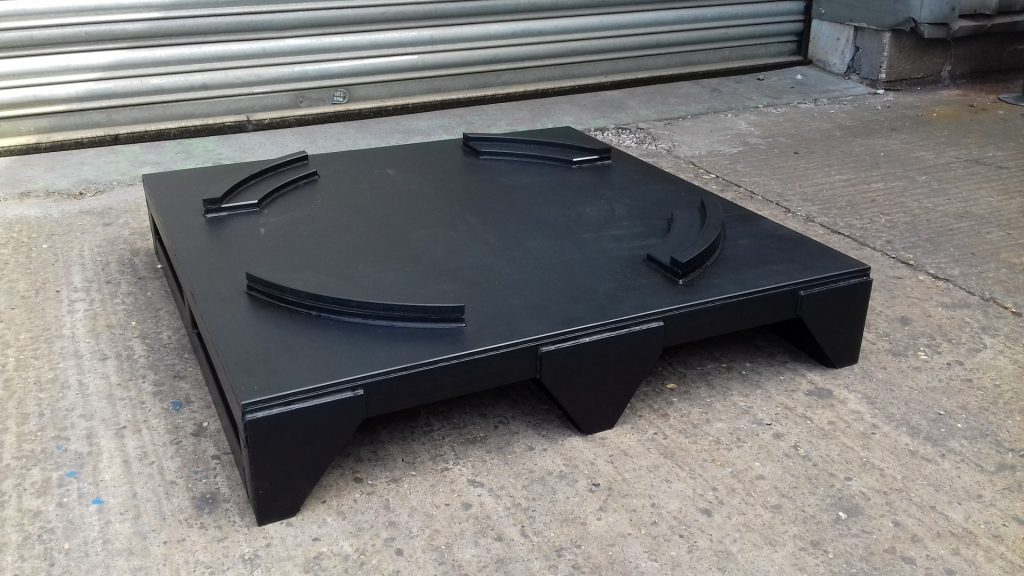

On the top face of the pallet, there features plastic locators for the parts to sit into. This stops metal to metal contact which stops damage to any of the parts.

The pallet has been left in its natural colour due to customer requirements.

Approximate overall size – 190mm (H) x 900mm (W) x 900mm (L)

Quantity: 4 off

Acres Reference – AD-51-2013-01
