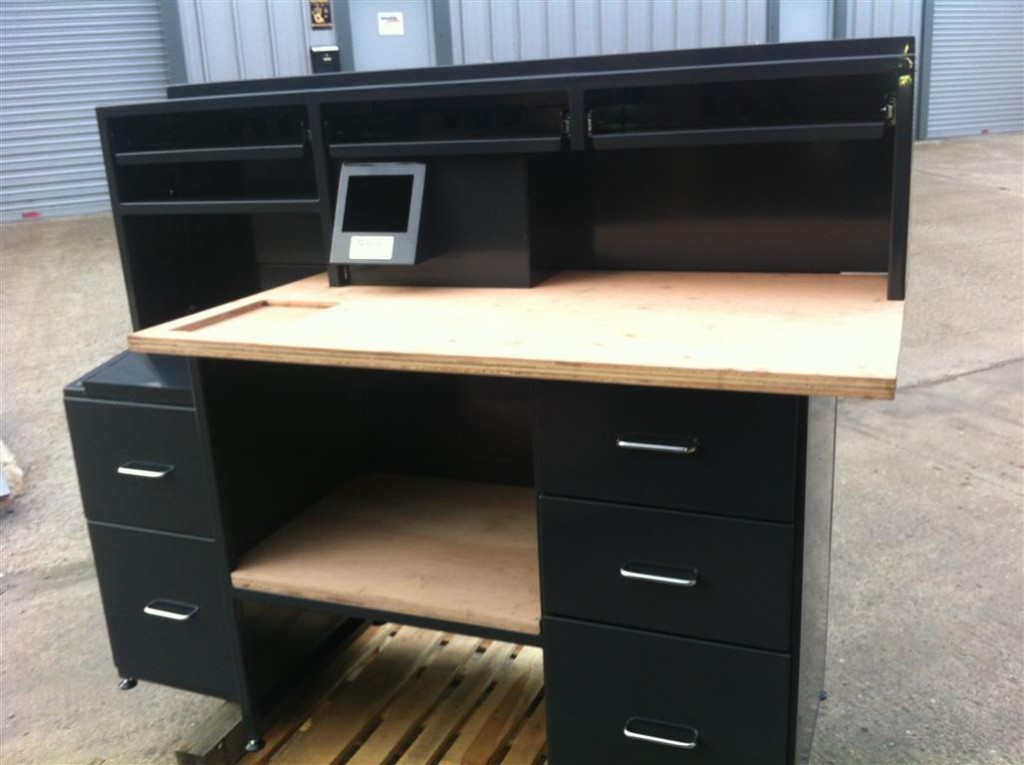

Cell F Work station
Scope of work:
Manufacture Cell F Work station to drawing number 2012-08-9478.
The work station has been fabricated from 30mm x 30mm box section and 1.5mm cold rolled mild steel sheet.
The station is fitted with 5 drawers which are fitted with ball bearing slides. The table top is made from 30mm thick plywood (2 x 15mm) with a hardwood edge strip.
The rear of the bench will have a full 50 mm deep cover to hide all cables and prevent them from being damaged.
Approximate overall size 1807mm (W) x 750mm (D) x 1400 (H).
Ref: 2012-08-9478
