Makino A55 Operator Platform

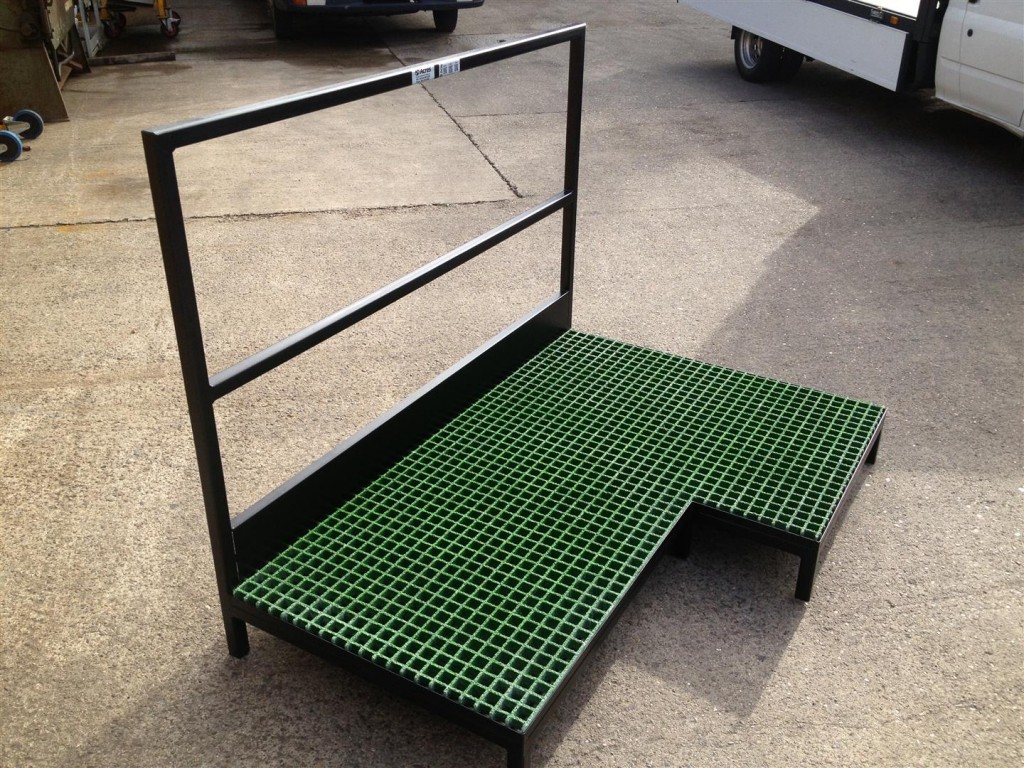

The Platform is manufactured from 40mm x 40mm box section for the base frame and handrail with 25mm x 25mm angle to support the fibreglass antislip grating. Under the grating is a sheet metal drip tray to catch any oil preventing it from causing a slippery floor surface around the machine.

Approximate overall size – 1800mm (L) x 1200 (W) x 1300mm (H) to the top of the hand rail, platform working height will be 200mm.

Drawing Number: 2012-08-9487
