Cone Stands for medium Crushers
Scope of work:
Design and manufacture QH440 Cone Stands to drawing number 2012-09-9526. Perform 5000kg load test before shipping.

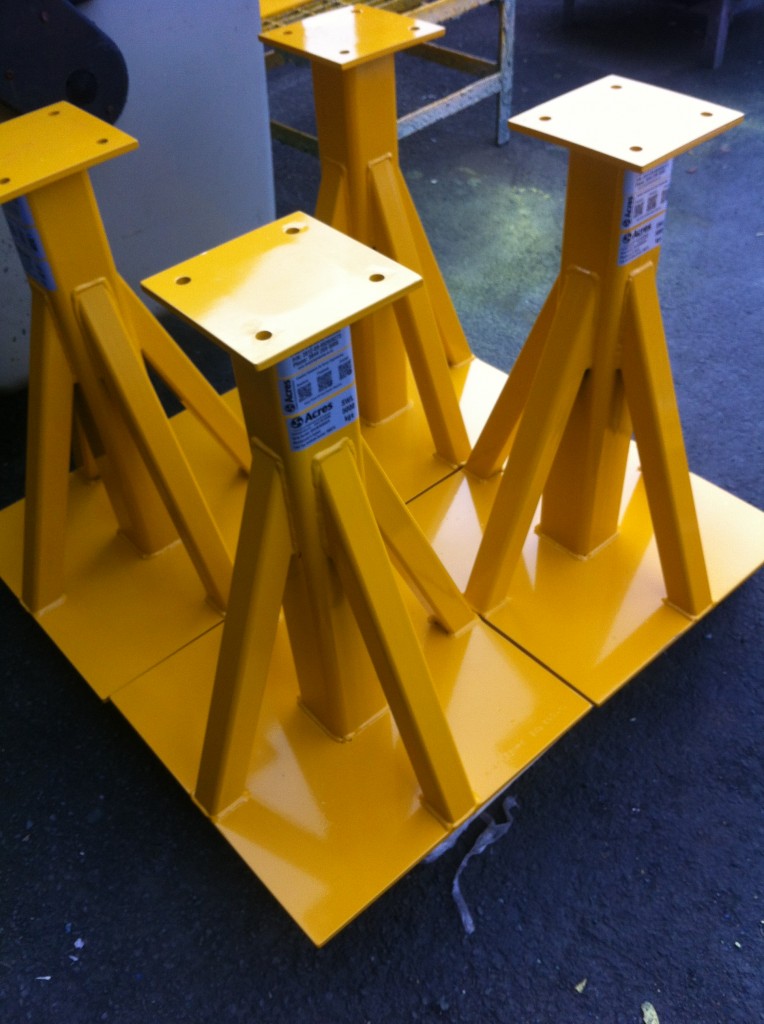

The stands have been fabricated from 100mm x 100mm x 8mm steel box section and 10mm thick mild steel plate. The stands are supported by gussets made from 50mm x 50mm x 5mm steel box section. The stands have been powder coated to give them a hard wearing durable finish.
Approximate overall size – 700mm (H) x 500mm (W) x 500mm (D).
The stands have been load tested and certified to a safe working load of 5000kg.
Ref: 2012-09-9526
