2012-10-9616 – Transportation Boxes Hot Creep Form Process



Produce CAD drawings and Manufacture Transportation Boxes for the Hot Creep Post Form Process.

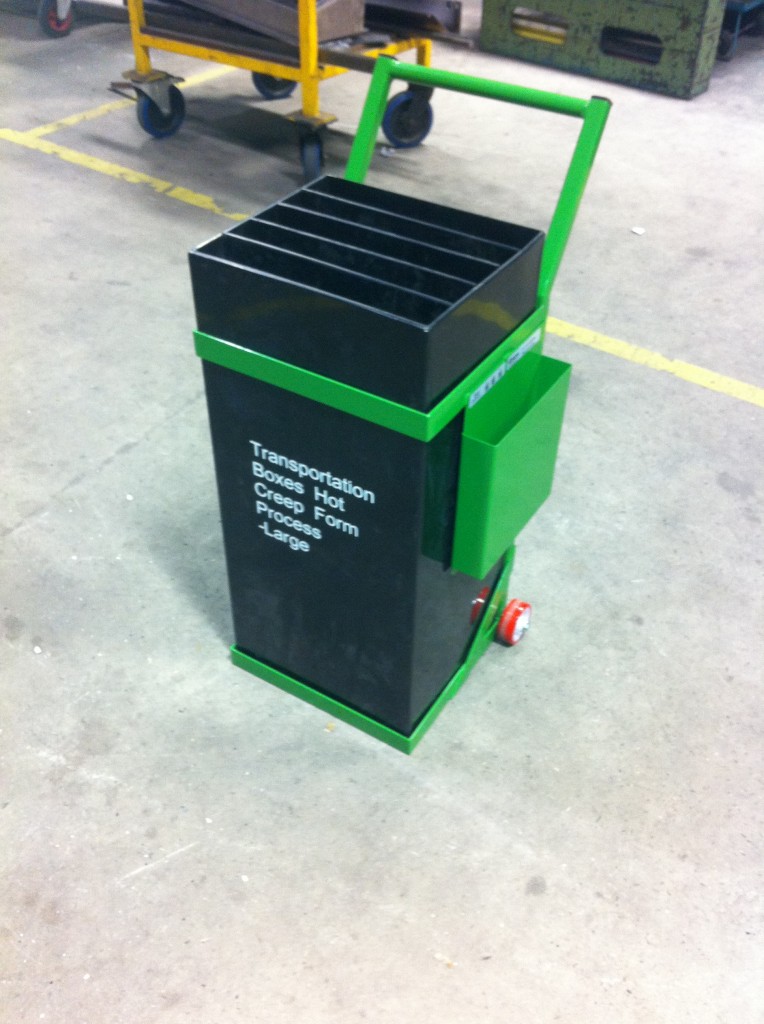

The assembly will comprise of an outer sack truck style frame fabricated from 25mm x 25mm angle and 25mm circular hollow section tube. The plastic box will sit in the angle base frame and held securely in place via a 25mm x 3mm flat support strap around the outside ot thr box. 2 off 80mm dia Red polyurethane on white nylon Wheels will enable the unit to be moved. An A4 size document pocket will be fitted to the side of the trolley.

Approximate size of plastic box  – 770mm (H) x 350mm (W) x 300mm (D) – with 5 off sections at 340mm (ID) x 55mm (ID).

The base of the boxes will have a row of 30mm od holes in each section to allow any debris to escape.

Handle height of the units will be 940mm.

The box will be engraved with “Hot Creep Form – Post Form Only”.
