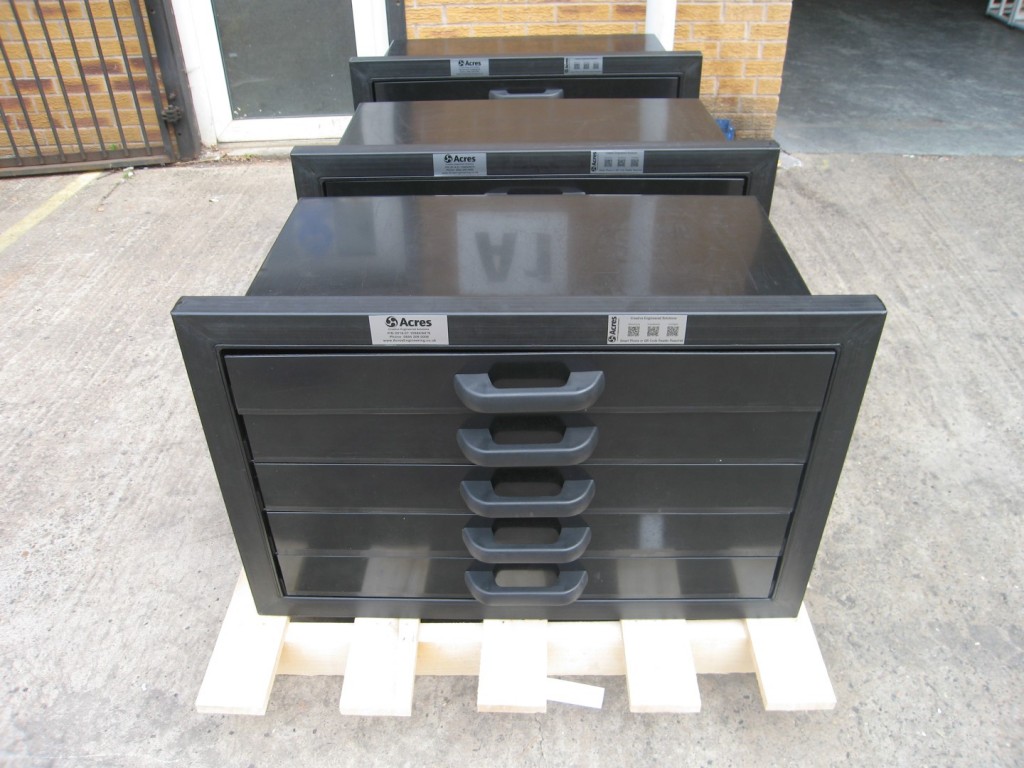

A Frame HDPE Drawer Unit

Drawing Number: AD-54-2013-01-3


The HDPE Drawer Unit has been designed for a large midlands based aerospace OEM to integrate with their current A frame parts storage solution.

The unit has been manufactured from heavy duty 6mm HD Polyethylene. It has been fitted with framework made from 40mm x 40mm x 4mm HDPE box section which provides support and allows the assembly to be properly mounted to the A frame.

Parts are stored in 5 off drawers also fabricated from HDPE with rubber inlays providing additional protection. Each drawer is fitted with a single plastic D handle.

Approximate overall size – 830mm (W) x 500mm (D) x 535 (H)

Acres reference: AD-54-2013-01-3
