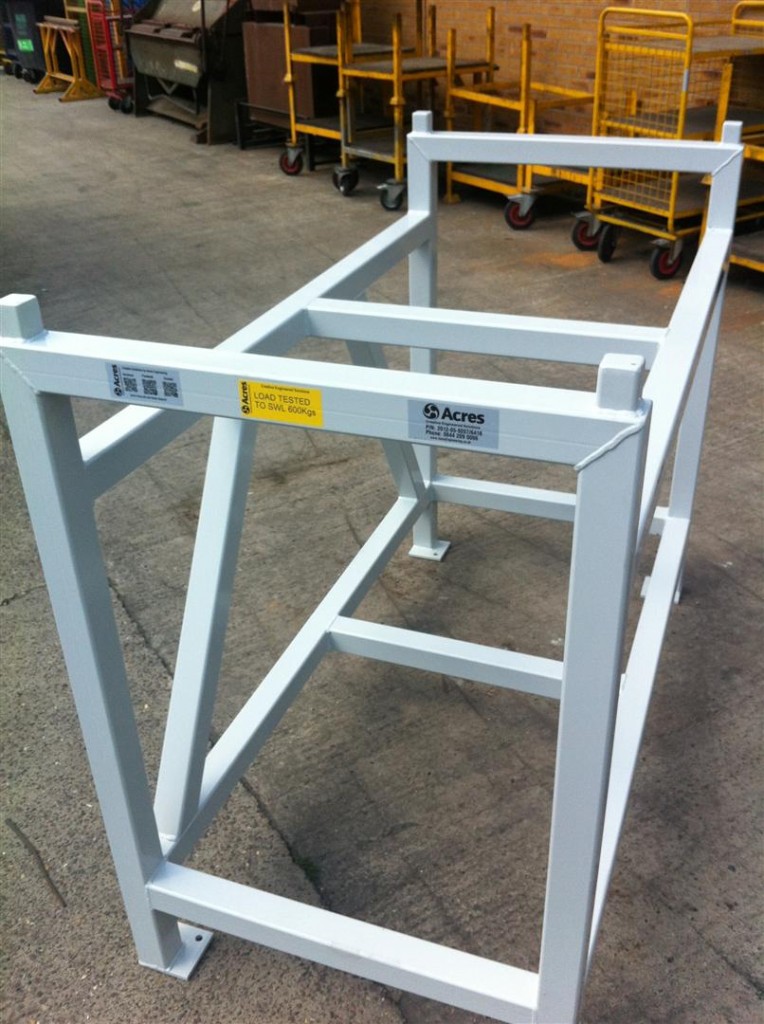

AD-131-2013-03 – Stator Coil Build Frame



Manufacture a bolt down frame to integrate with Stator Coil Stillages. The frame is to be bolted down next to the build line so that Stator Coils can be transported from manufacture without being handled twice. The implementation of this solution will result in a reduction of lead time from sub assembly manufacture process to final assembly process.

The frame is manufactured from 50mm box section and load tested to 600kg.

Approx. size: 780mm wide x 1560mm long x 1230mm high.
