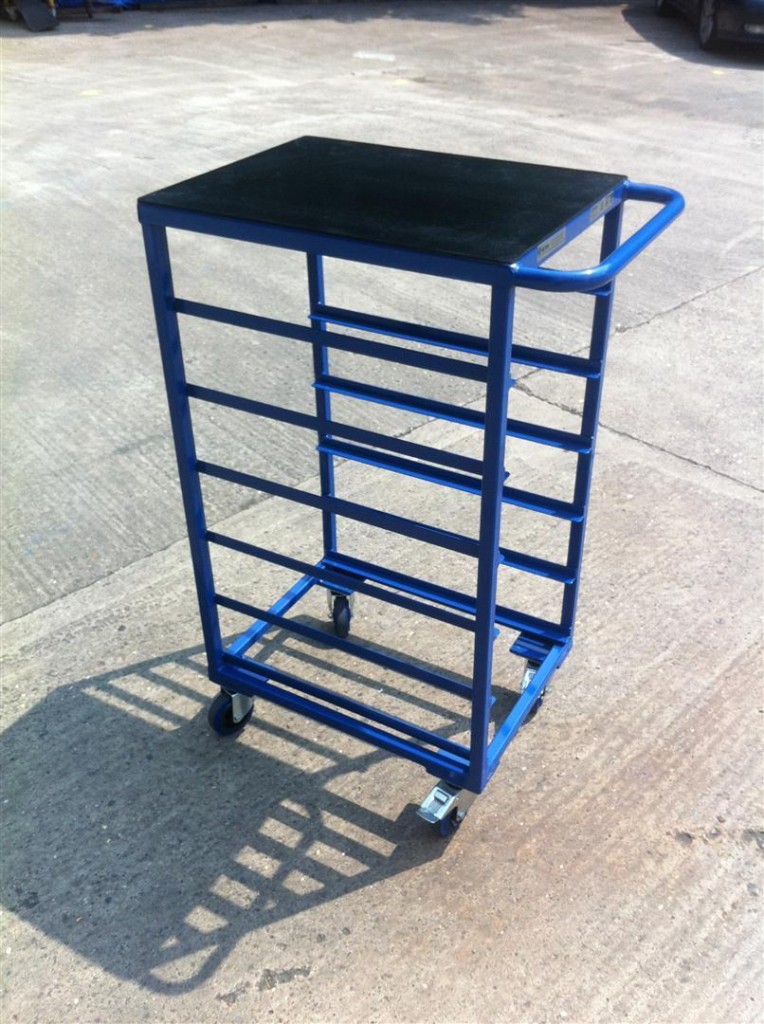

AD-141-2013-03 – Standard Tray Trolleys



Manufacture tray Trolleys to drawing AD-141-2013-03. The trolleys are designed to safely carry standard size blade trays and will be fabricated from 25mm x 25mm x 3mm box section and 25mm x 25mm x 3mm angle to carry the trays.

They will be fitted with 100mm diameter blue elastic tyred wheels with a black plastic centres, 2 castors will be swivel and 2 will be swivel with brakes.
They will also feature a 25mm diameter formed tubular handle on the open end to help maneuverer the trolleys.

Approximate overall size – 1152mm (H) x 466mm (W) x 614mm (D).
