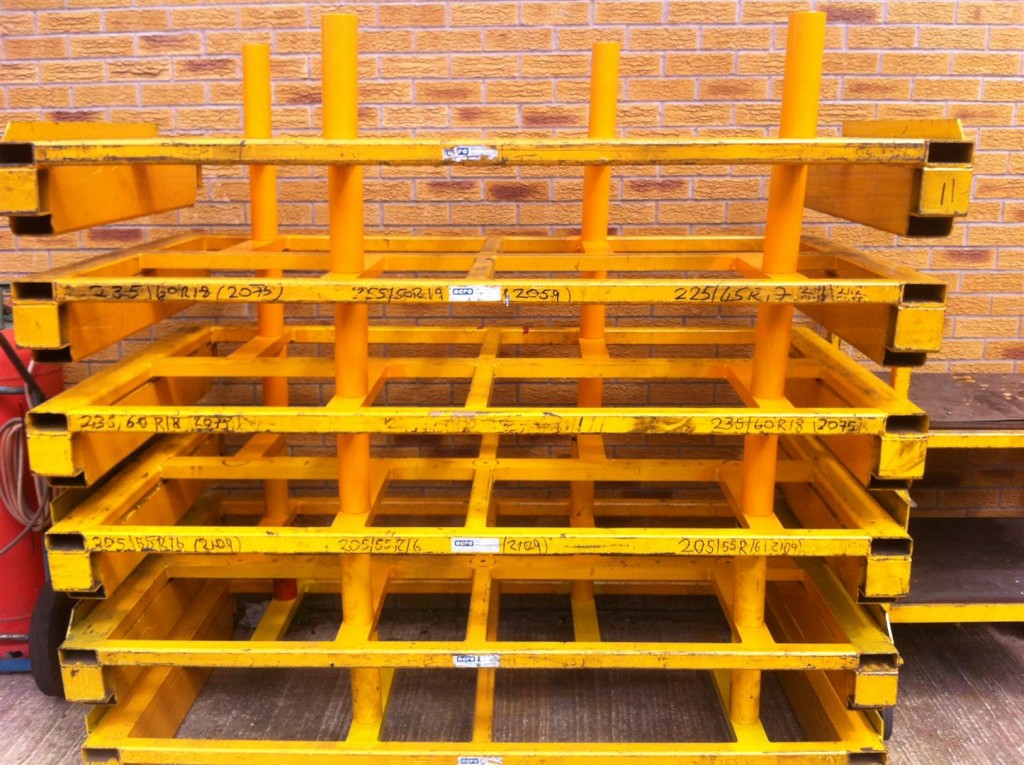

AD-155-2013-05 – Modifications to Existing Drum Pallet


Modify existing drum pallet to locate 4 off tyre drums instead of 3 off by adding extra supports to the pallet. Drawing number AD-155-2013-05.

Collect pallet from Pirelli Tyres Burton on Trent.

Add new 76mm x 38mm channel support members to the pallet by welding in place.

Bolt in place locating tubes.

Repaint areas that have been modified.
