AD-162-2013-05-2 – Bench Shelf And PC Guards
AD-162-2013-05-2 – Bench Shelf And PC Guards
The shelf will be manufactured from 18mm Phenolic coated plywood and fit in the lower section of existing benches, it will have 10mm diameter locating holes running along its length to locate the PC guards in the required position to…
Read More

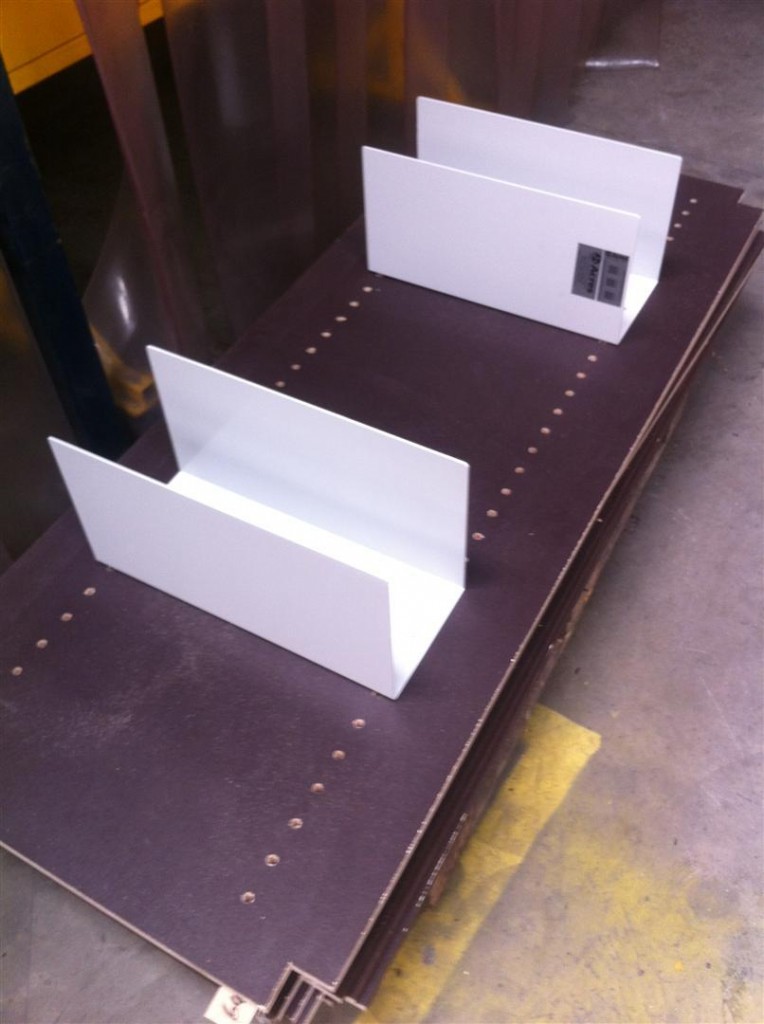

The shelf will be manufactured from 18mm Phenolic coated plywood and fit in the lower section of existing benches, it will have 10mm diameter locating holes running along its length to locate the PC guards in the required position to suit user.
Approximate overall size – 1780mm (L) x 720mm (D) x 18mm (thick).
The PC guards will be fabricated from 3mm aluminium sheet formed into a U shape to locate and protect PC towers situated under the bench. They will feature nylon locating pins on the underside that will fit into the holes on the shelf and powder coated to give a hardwearing durable finish. 2 off guards per set.
Approximate overall size – 250mm (H) x 250mm (W) x 500mm (D).
