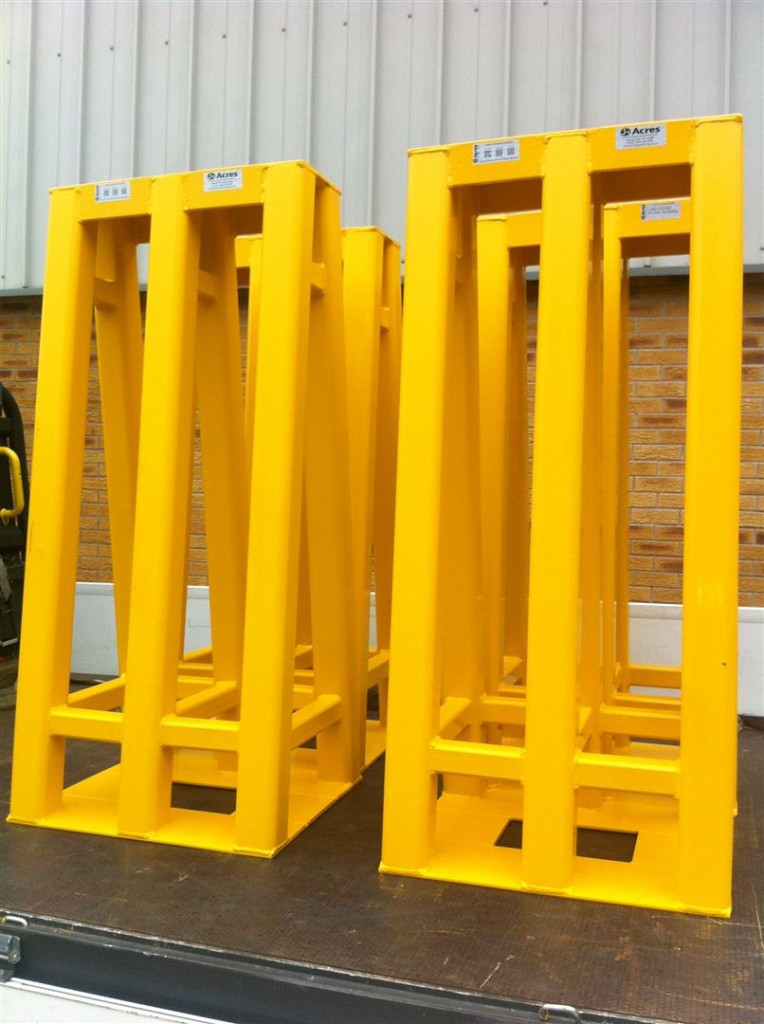

AD-196-2013-06 – Stator Frame Stands


Stator Frame Stands design.

The stands will be designed to carry the Stator Frame, they will be manufactured from 260mm wide parallel flange channel for the top contact face, 100mm x 100mm box section for the legs and cross members with 10mm thick plate feet.

Load tested to 20,000kg SWL
