Fixture Tool Trolley design.

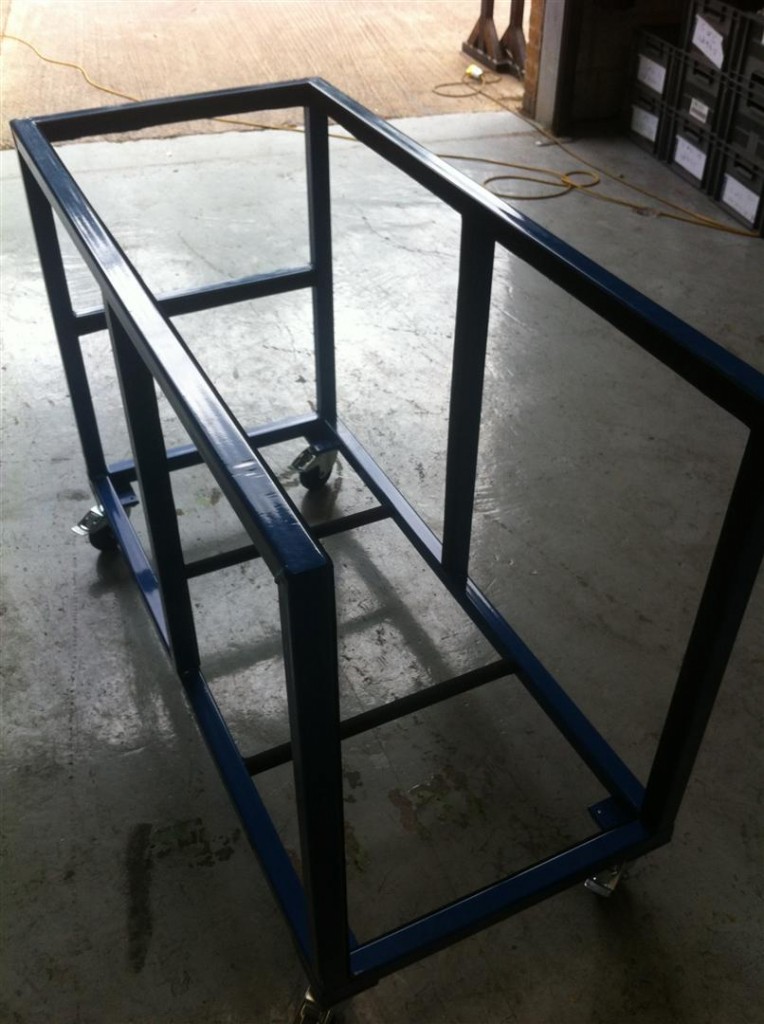

The Trolley will be designed to carry and store circular assembly fixture discs. It will be manufactured from 40mm x 40mm box section and 26mm diameter tube.The main frame will feature a base section with two up stand side supports to locate the discs in-between, the discs will sit on two tubular rails to limit the contact area with the discs.
All contact faces will be covered in foam neoprene to prevent damage to the components being stored.5
It will be fitted with 4 off swivel and braked castors with 100mm diameter blue elastic tyred wheels with a black plastic centres.
