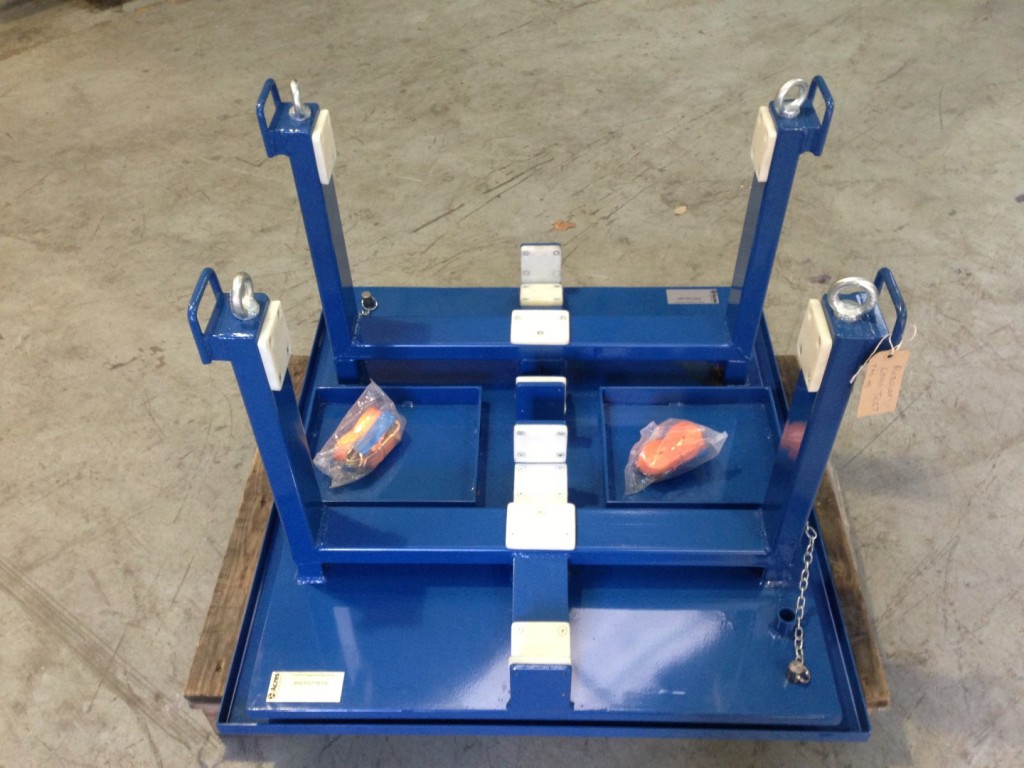

AD-231-2013-08-1 – T900-HPC



Trent XWB Storage Pallet Design.

The pallet is designed specifically to suit machine tools detailed by the customer. Custom ID labels have been added for identification.

The base of the pallet features a turntable ring allowing the top section to rotate 180 degrees. To lock it in position index pins drop into a hole on the base section of the turntable ring.

Approximate overall size – 900mm (W) x 900mm (L) x 450mm (H) Not including tooling.

It has been finished in powder coat Blue BS 4800 20 D 45 and has white Nylon 6 pads.
