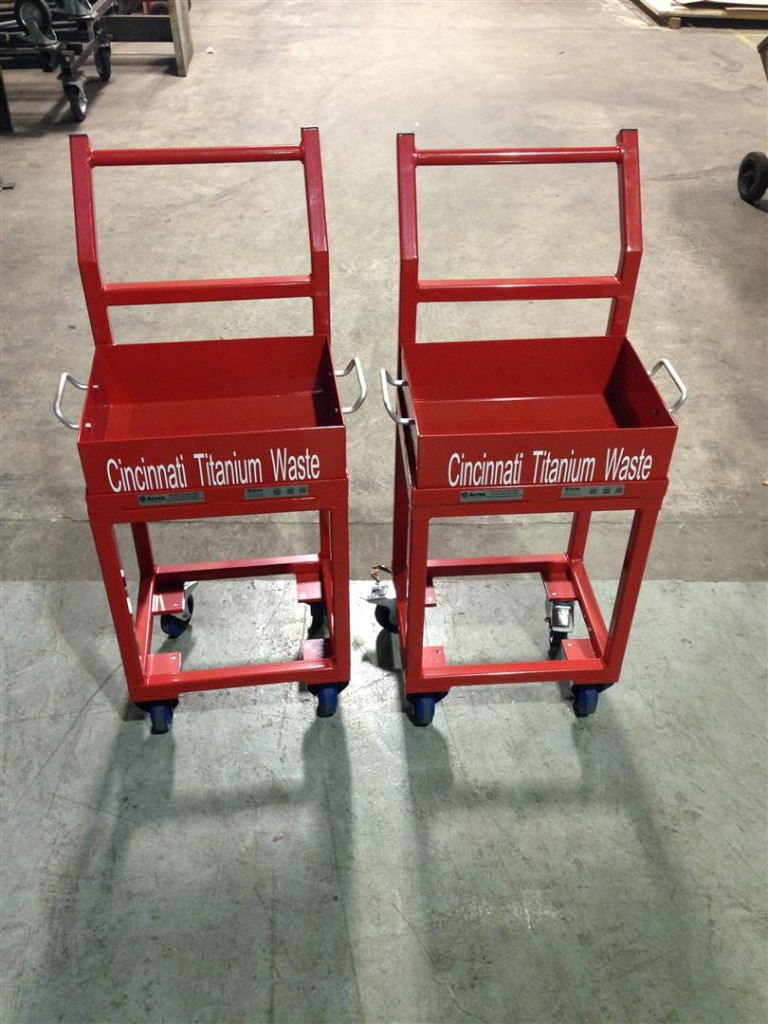

AD-247-2013-08 – Cincinnati Titanium Waste Trolley



Bespoke Cincinnati Titanium Waste Trolley Design.

The Trolley main frame is fabricated from 30mm x 30mm box section and fitted with 160mm diameter castors; 2 off swivel with brakes and 2 off fixed. The waste tray on the trolley has been set at 700mm high so it can be easily lifted for emptying and have side handles. It also has an identification plate fitted to the front reading ‘Cincinnati titanium waste’.

The trolley has been powder coated to give a hard wearing durable finish.

Approximate overall size – 1000mm (H) x 400mm (W) 500mm (D). Waste tray size 400mm (W) x 300mm (L) x 120mm (D)
