AD-59-2013-01 – Jig I.D. Plates – Spring Loaded-30mm Box
AD-59-2013-01 – Jig I.D. Plates – Spring Loaded-30mm Box
Jig I.D. Plates design. Manufacture from 1.6mm mild steel, punched to size with 3 digits per plate. Approximate size: Leg 1: 80mm OD Leg 2: 50mm OD Width: 100m OD Depth: 32mm ID Fitted with a Springloaded Index bolt which…
Read More

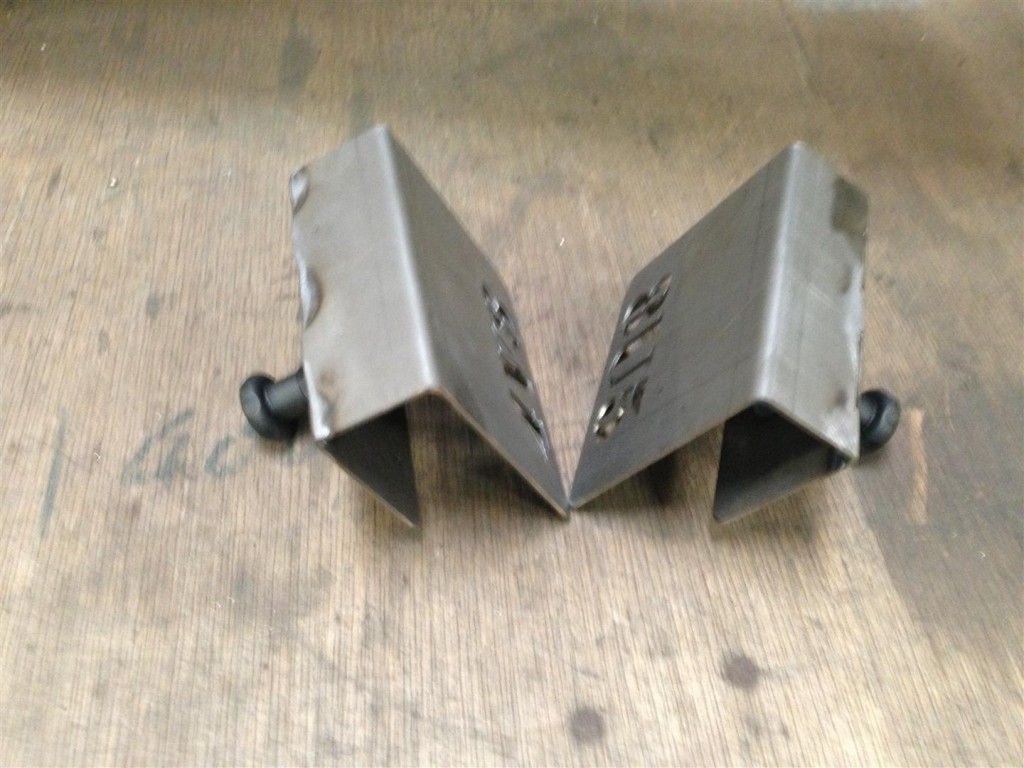

Jig I.D. Plates design.
Manufacture from 1.6mm mild steel, punched to size with 3 digits per plate.
Approximate size:
Leg 1: 80mm OD
Leg 2: 50mm OD
Width: 100m OD
Depth: 32mm ID
Fitted with a Springloaded Index bolt which will protrude to the rear of the ID plate and lock the plate in position.
