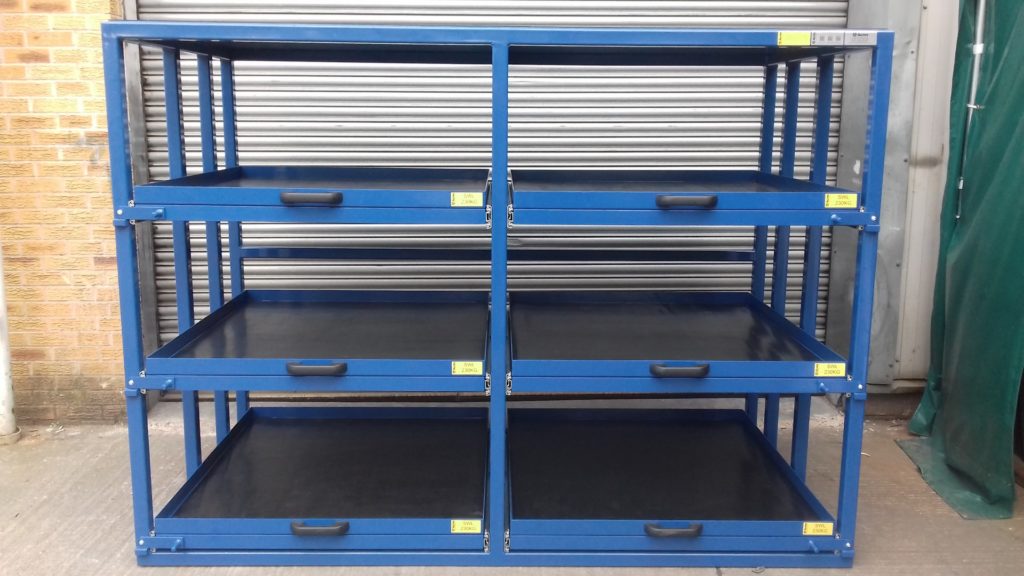

C4 Fitting Shop Pull-out Tooling Shelving Rack

Drawing Number: AD-1339-2017-09



The C4 Fitting Shop Pull-out Tooling shelving Rack has been designed and manufactured for a Midlands based aerospace company to store regularly used tools which assist in the fitting shop.

The main framework has been manufactured from 50 x 50 box section with a thin wall to provide an optimum strength vs weight solution. There is a mild steel sheet on top to stop anything from getting into the drawers. The unit also features bolt holes in the framework so that the unit can be bolted down.

The unit features 6 drawers which have been bolted in to place with drawer slides. On the drawer, there is a handle which allows the operator to open the drawers easily. On the front of the unit there are catches which stop the drawers from coming out when they are not in use.

On the top of the unit and in the base of the drawers there are rubber sheets which stops metal to metal contact with the tools and stops the tools from getting damaged.

The unit has been powder coated in BS4800 – 20 D 45 Blue to provide a hard wearing, long lasting finish.
