Charger Mount Plates and Balancer Mount Plates

Drawing Number: AD-1196-2016-11-2

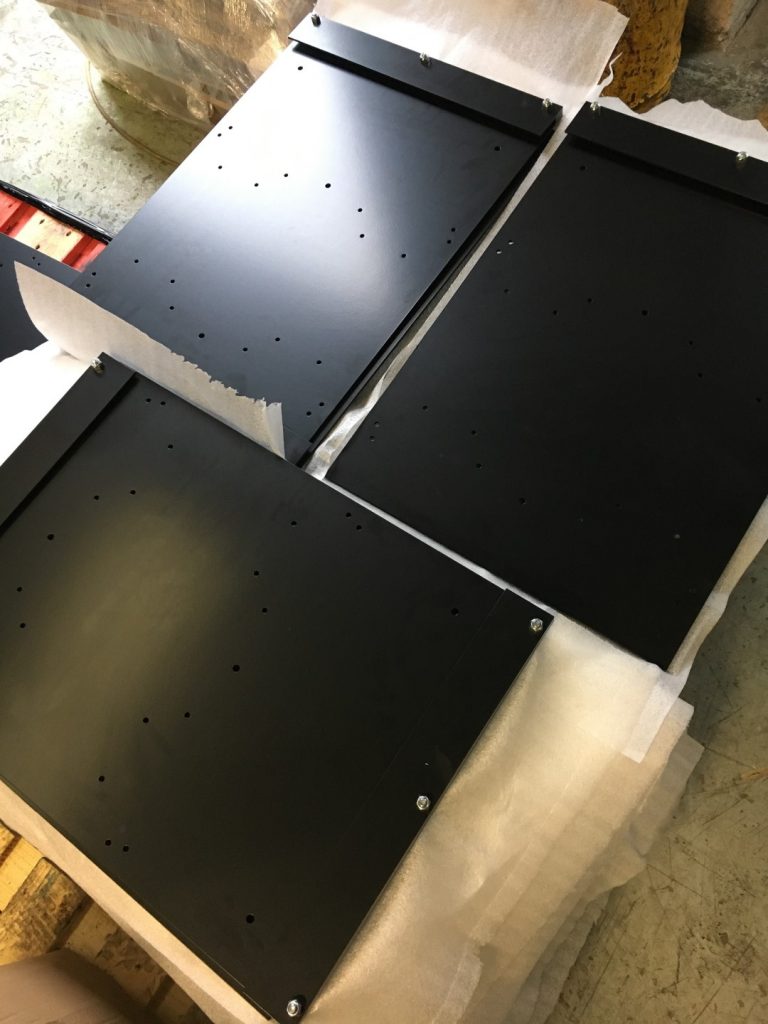

The charger mount plates and balancer mount plates have been designed and manufactured for a international battery OEM for use in conjunction with racking for mounting and securing battery chargers within open battery rooms where load-bearing walls are not in close proximity.

These have been made from 4mm thick mild steel and 10mm mild steel laser cut plates which have be bolted together with M8 button head bolts and M8 nyloc nuts. This solution vastly reduces the cost of manufacture.

The plates have been powder coated in Black to provide a hard wearing long lasting finish.

Approximate overall size – 100mm (W) x 150mm (L) x 18mm (D).

Approximate overall size – 470mm (W) x 660mm (L) x 18mm (D).

Quantity: 250 off each

Acres Reference – AD-1196-2016-11-2
