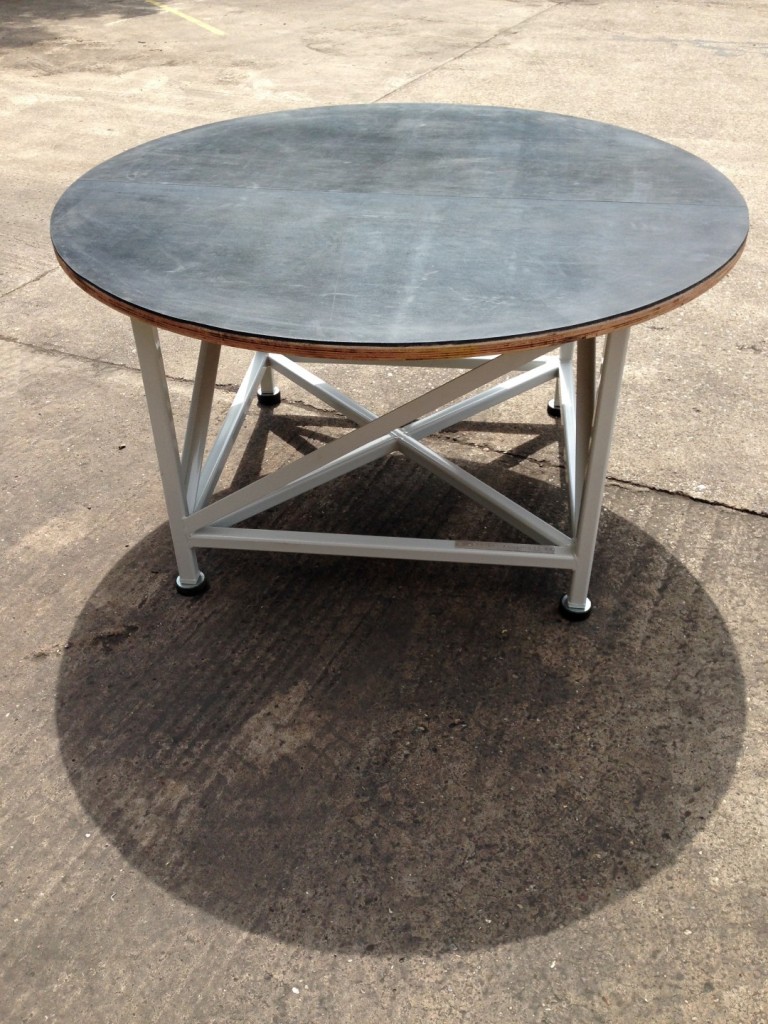

Circular Inspection Table

Drawing Number: AD-432-2014-04



Circular Inspection Table Design:

The main base frame of the table is fabricated from 40mm x 40mm box section with angle cross supports. It features adjustable feet for levelling on unCircular Inspection Tableeven floors and has been powder coated to give a hard wearing durable finish. The circular top of the table is made from 25mm thick far eastern plywood which is varnished to seal the wood. A rubber top has been added to provide a better working surface.

The table has been load tested to give a SWL of 600 kg.

The table has been powder coat finished in Light Grey RAL 7035.

Approximate overall size – 1500mm diameter x 880mm (H).

Acres Reference – AD-432-2014-04
