Circular Support Discs Set

Drawing Number: AD-518-2014-08

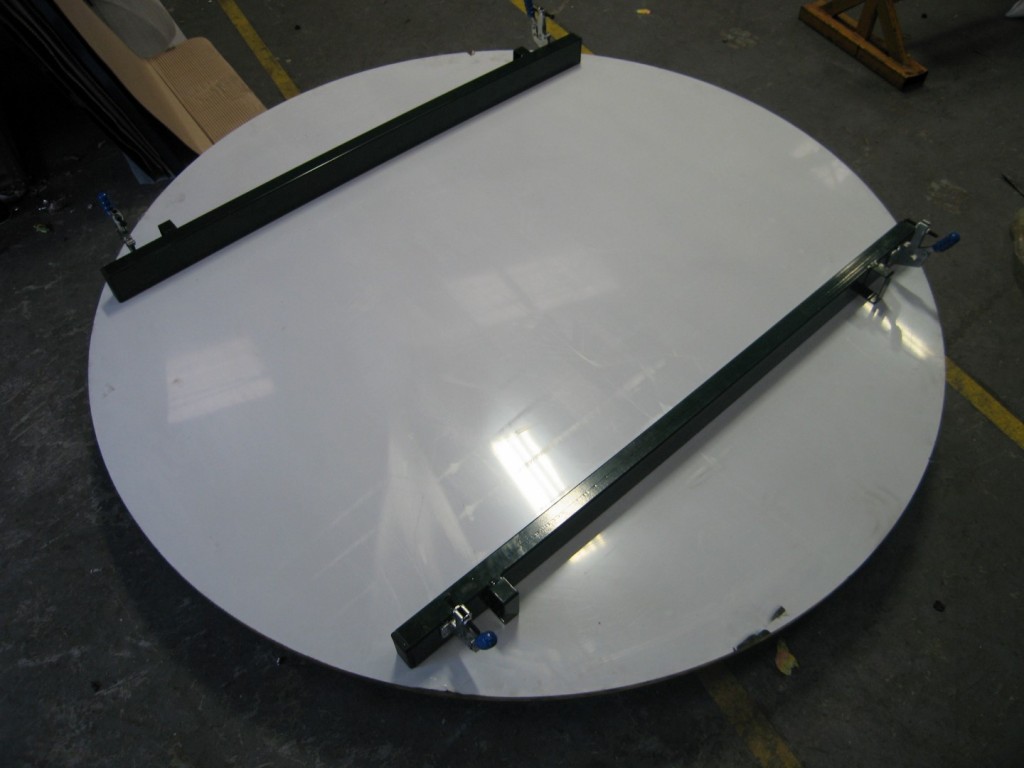

The Circular Support Discs have been designed for a large midlands based aerospace OEM to sit on top of a raise and lower table and support engine parts.

The circular support discs have been manufactured from 25mm thick Perspex with a 3mm rubber top and guides on the underside to locate them onto the table.

To lock them into position each of the discs have 4 off toggle clamps on the underside which fix to the hydraulic trolley below.

Approximate overall size disc 1 – 1820mm (OD) x 28mm (Thick)

Approximate overall size disc 2 – 1350mm (OD) x 28mm (Thick)

The customer has requested the units not be coloured or coated but we are happy to add this to future designs.

Acres reference:  AD-518-2014-08-1
