Etch Trolleys

Drawing Number: AD-374-2014-02


Etch Trolley Design.

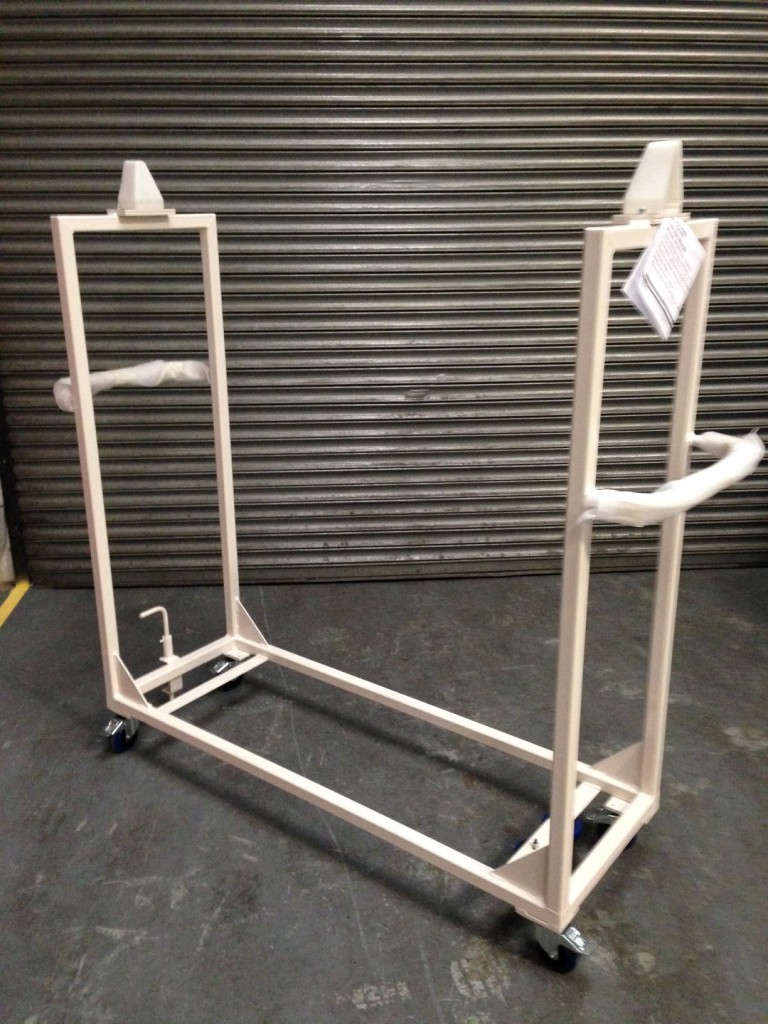

The etch trolleys have been designed to carry etch part kits. The main frame is manufactured from 40mm x 40mm box section with a 25mm diameter handle at each end. They feature 2 guide wheels set in a horizontal orientation for locating into a racking system and a spring loaded locking bolt to fix in place. To manoeuvre the trolley it has 4 off 100mm diameter swivel castors, 2 off with brakes. These are high load non marking wheels.

The trolley has been powder coat finished in RAL 9001 Ivory.

Approximate overall size – 1560mm (L) x 550mm (W) x 1585mm (H).

Acres Reference – AD-374-2014-02
