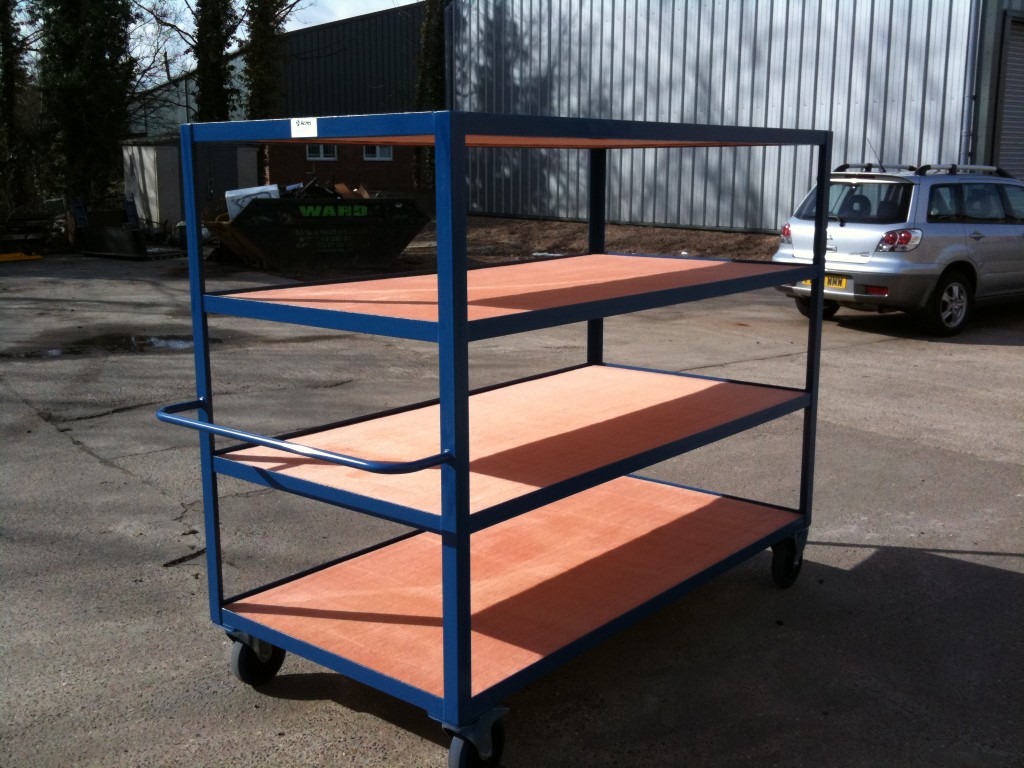

from the archive…2010-02-7260 – Kitting Trolley



Manufacture kitting trolley to drawing number 2010-02-7260. Featuring 4 off shelves with 360mm spacing. Each shelf will sit inside an angle frame. The board itself will be 18mm thick plywood. 2m x 1m in size and fitted with hard wearing cord carpet (blue).

The trolley will be fitted with 200mm diameter castors. Fixed castors at one end, swivel with brake castors at the other.

The kitting trolley will be manufactured from 50mm x 50mm x 3mm mild steel angle. Approx. overall size: 2231mm long (inc handle) x 1048mm wide x 1527mm high.
