GG Build Stand

Drawing Number: AD-497-2014-07


GG Build Stand:

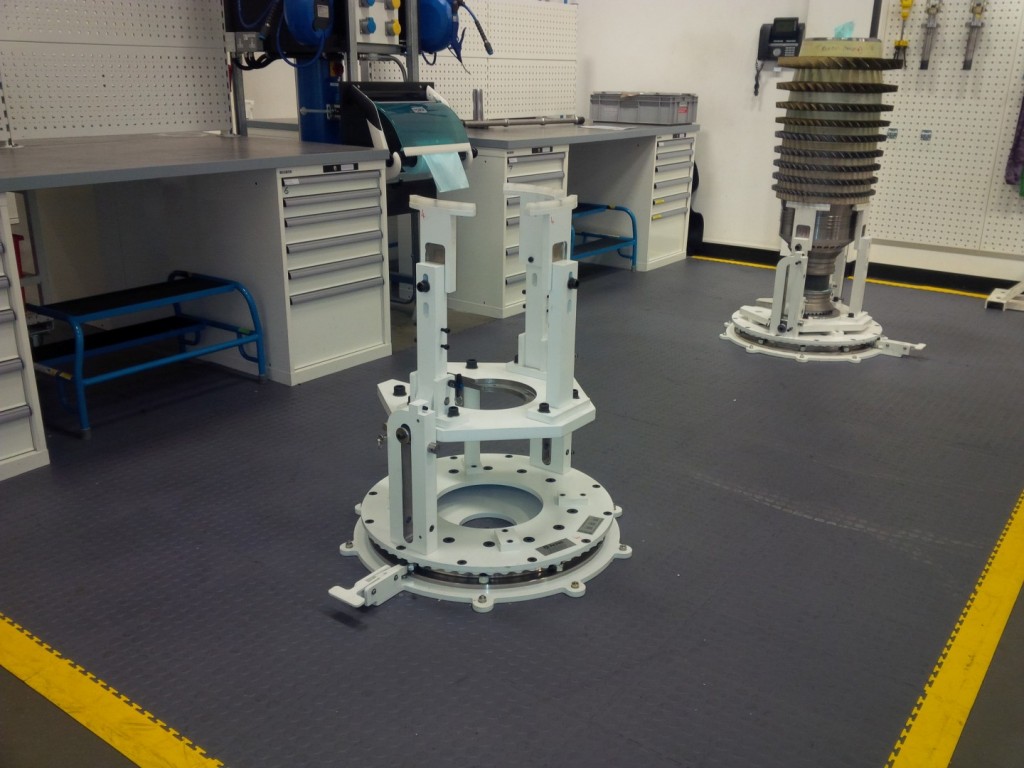

The build stand was designed to hold and assist in the assembly of three different size rotors, featuring interchangeable centre plate locating sections to accommodate each rotor size. Universal stabilising arms with PTFE clamping blocks attached fit to the base plate via positioning dowels and lock in place using quick release Cam Hook Clamps.

To Build Stand features a slewing ring allowing the whole stand to manually rotate 360 degrees. An indexing pin operated via a foot pedal locks the stand in position, this is spring loaded and only releases when the foot pedal is pressed.
Also supplied will be a detachable Dial Test Indicator frame which will bolt to one of the upright support legs.

Approximate overall size 700mm (W) x 700mm (D) height adjustable.

Acres job number: AD-497-2014-07
