Kitting Cage

Drawing Number: AD-61-2013-01



Kitting Cage – REF 2017-09-14081

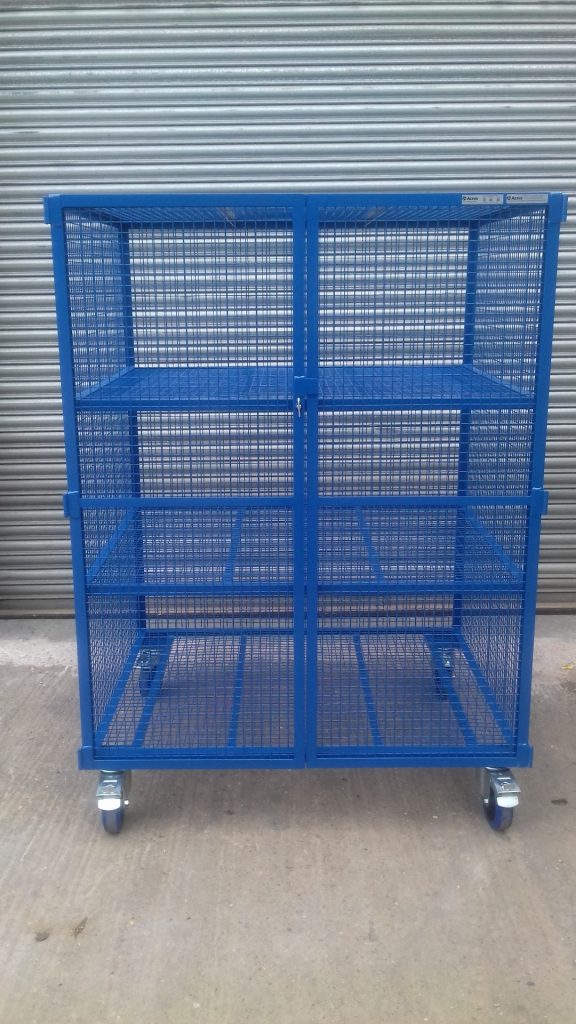

The Kitting Cage has been designed and manufactured for a Midlands based aerospace company for storage of small components inside boxes.

The cages have been manufactured by a 30mm x 30mm angle framework with 50mm x 50mm weldmesh which sits flush to the angle. The cages feature 3 shelves which are made up of 30mm x 30mm angle with 20mm x 20mm angle for support underneath of them. The shelves also feature the same weldmesh to the outside.

The unit features two lockable folding doors to prevent the pars from falling out when the cages are in transport.

The cages also feature 2 off 160mm swivel castors and 2 off swivel with break castors which feature an elastic rubber tyre on nylon centred wheel. The unit has swivel with break castors to improve maneuverability for the operators.

The trolley has been powder coated in BS 20 D 45 Blue provide a hard wearing, long lasting finish.

Approximate overall size – 1250mm (W) x 1000mm (D) x 1760mm (H)

Quantity: 10 off

Acres Reference – AD-61-2013-01
