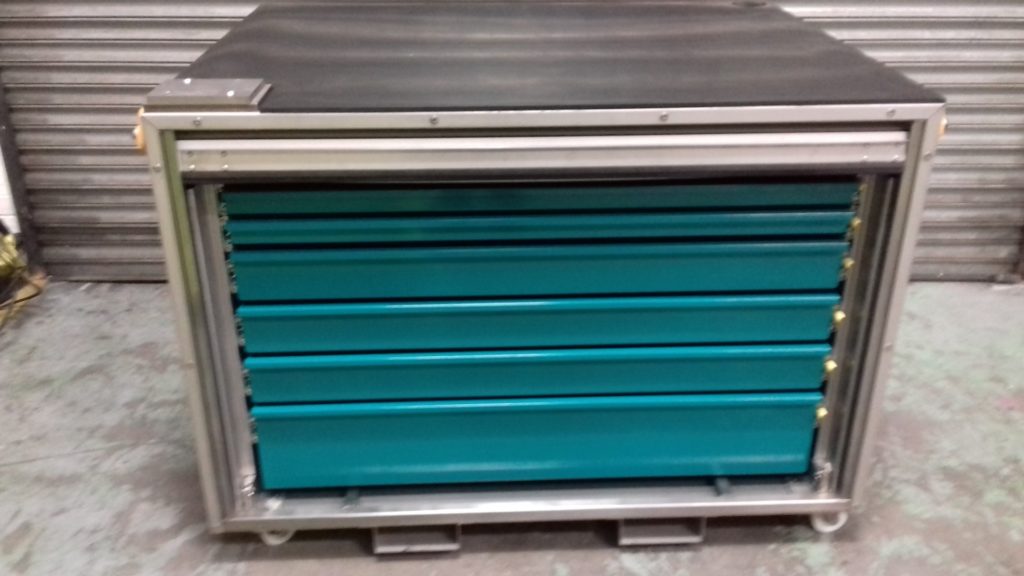

Large Toolchest – 6 Drawer

Drawing Number: AD-1255-2017-04



The Large Toolchest – 6 Drawer is part of a project for Fosters Industrial, has been developed for a leading gas turbine engine provider. The tool kit has been designed to accompany gas turbine engines and provide all the tooling required to maintain the engine.

This is a larger variation of the tool chest.

20170712_092906

The design features a stainless steel outer casing with a lockable roller shutter door. Fitted with stainless steel castors featuring 100mm diameter wheels, 2 off fixed 2 off swivel with total lock brakes for manoeuvrability. In addition, external lifting points and FLT access to the underside front and rear has been incorporated to ensure easy transportation. The top features a hard wearing phenolic work area with a vice plate.

A pass activated locking mechanism ensures security and tool trace-ability, while a tracking system, integrated into the design enables worldwide tracking, fitted by Thorcom.

The interior tool chest section has been be fitted out with 6 off drawers manufactured from steel and lined with the Snap On tool foams and tools. Drawers feature 100% extension drawer slides and recessed handles.

The tool chest will be supplied with a cover so that it is protected when it is being used outside.

These toolboxes have been manufactured with full compliance with BS12079.
