Large Tube Box

Drawing Number: AD-426-2014-04



XWB Large Tube Box Design.

The role of the Large Tube Box (Anaconda Case) is to eliminate all cardboard packaging before parts are sent down to the build line. It’s to act as a reusable solution for kitting media

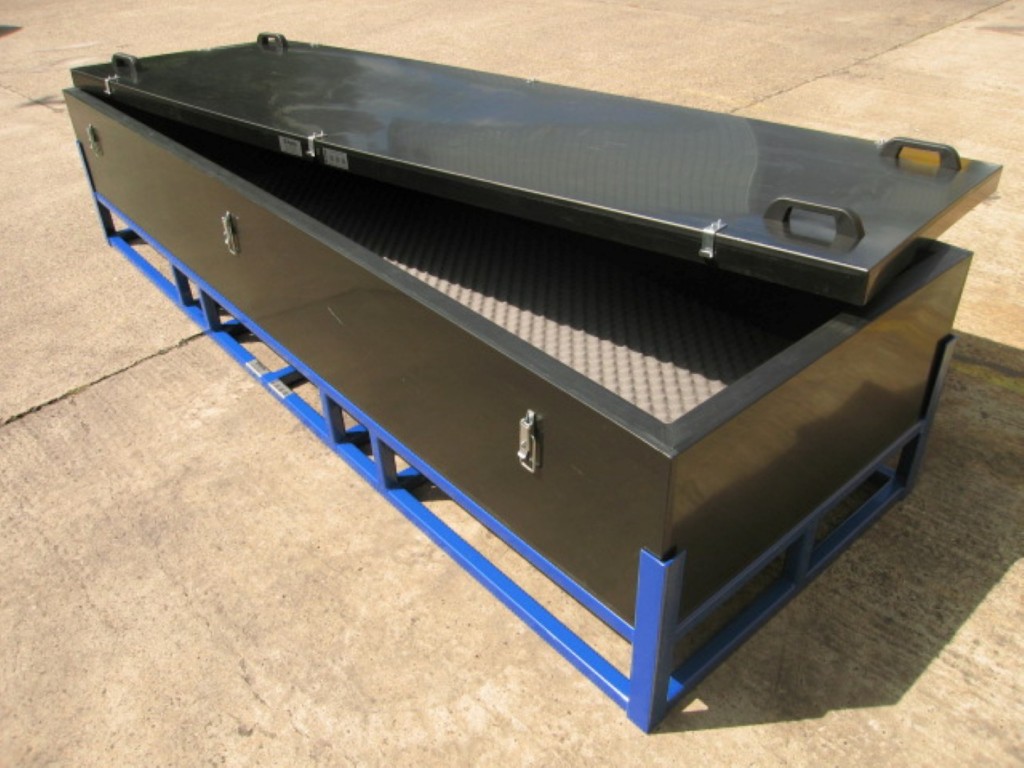

The main box is manufactured from 6mm thick PE300 sheet reinforced with PE300 box section. It features a hinged lid fastened with toggle latches. The interior has an egg box foam base while the sides are covered in 5mm self-adhesive foam to reduce the risk of damage to the parts stored. The box is fixed to a mild steel base frame designed to allow fork lift truck access for manoeuvring. The base frame also gives the whole assembly added strength.

The base frame has been powder coat finished in blue 20-D-45. While a black PE 300 has been used for the box assembly. Approximate overall size – 3000mm (L) x 950mm (W) x 600mm (H).

Acres Reference – AD-426-2014-04
