Lifting Adaptor

Drawing Number: AD-453-2014-06



HSK 160 Lifting Adaptor Design.

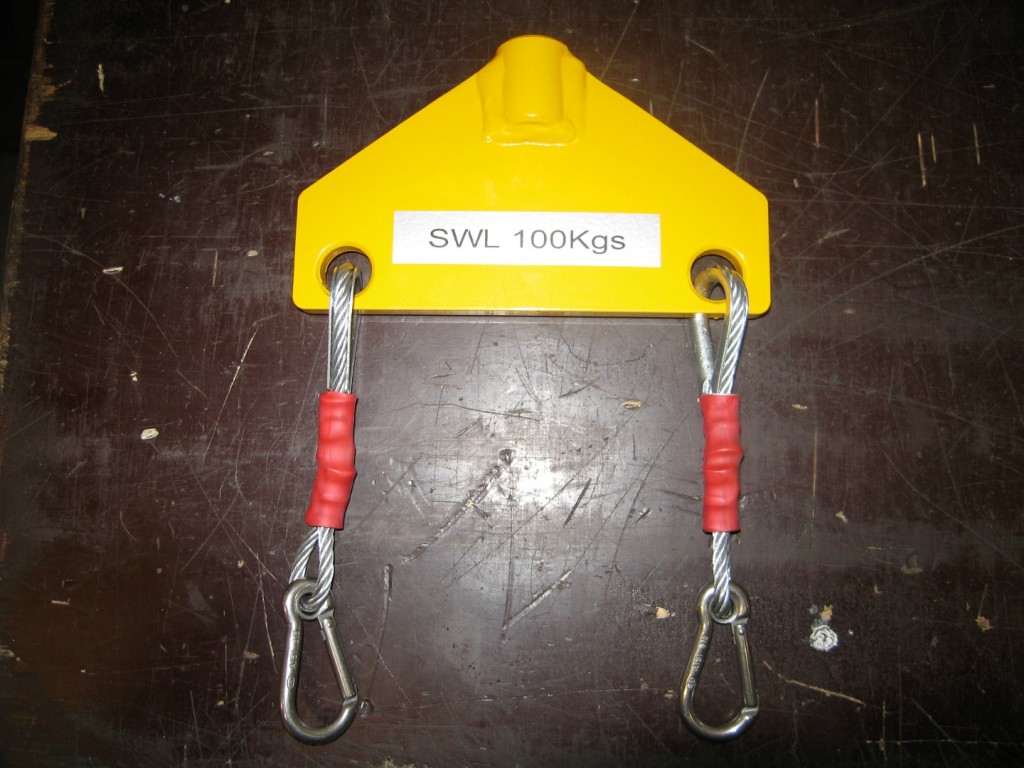

This lifting frame will enable the operator to safely lift the HSK 160 Adaptor using an existing gravity arm. It has been manufactured from laser cut plate with 2 off wire lifting ropes with hooks. The gravity arm can locate on a lifting nipple supplied by the customer.

Acres have load tested the lifting adaptor to a SWL of 100 Kg. A critical requirement for a piece of equipment such as this. The frame has been powder coasted yellow to provide a hard wearing durable finish. Approximate overall size 200mm (L) x 200mm (H) x 40mm (W).

Acres Reference – AD-453-2014-06
