Machine Table (Tall)



Machine Table (Tall).

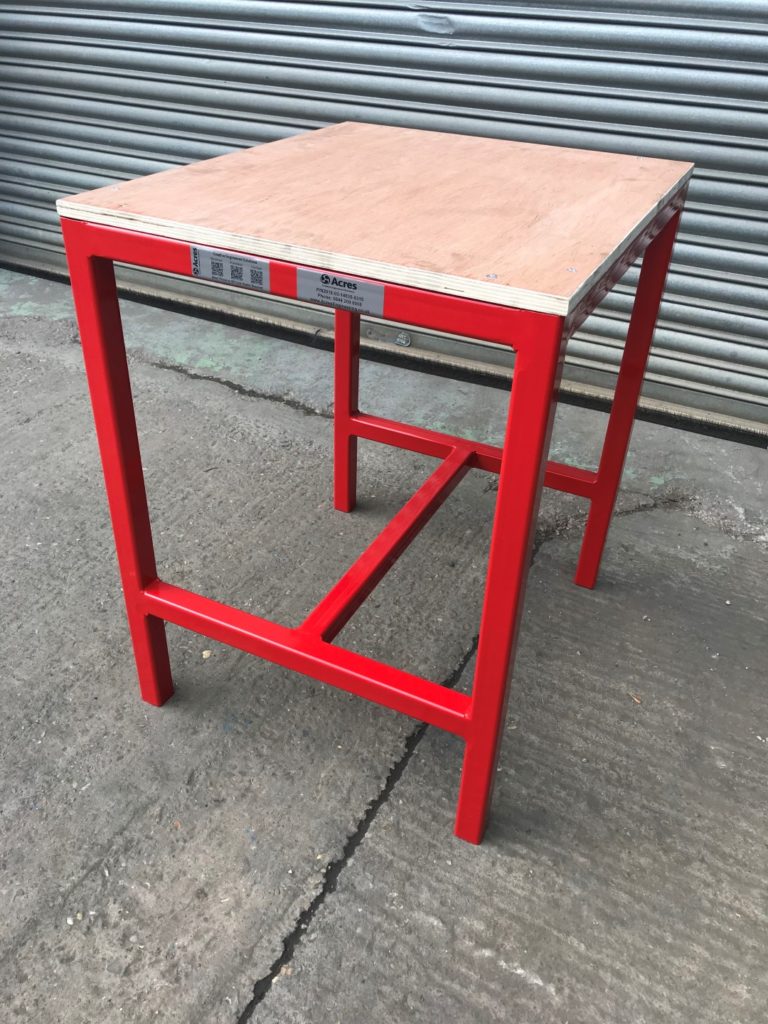

The Machine Table (Tall) has been designed and manufactured for a Midlands based calibration company to allow operators to store components on the table when they are finished on the machine.

The table has been manufactured using 40mm box section. The box section will have a thin wall to provide an optimum strength vs weight solution. On the bottom of the frame, there will be flat mild steel plates so that the unit is stable on all four corners.

Mounted to the frame, there will be an 18mm thick plywood worktop. This will allow for components to be placed on to the table. The fixings used to mount the top face to the frame will be countersunk so that there is nothing protruding the top face.
