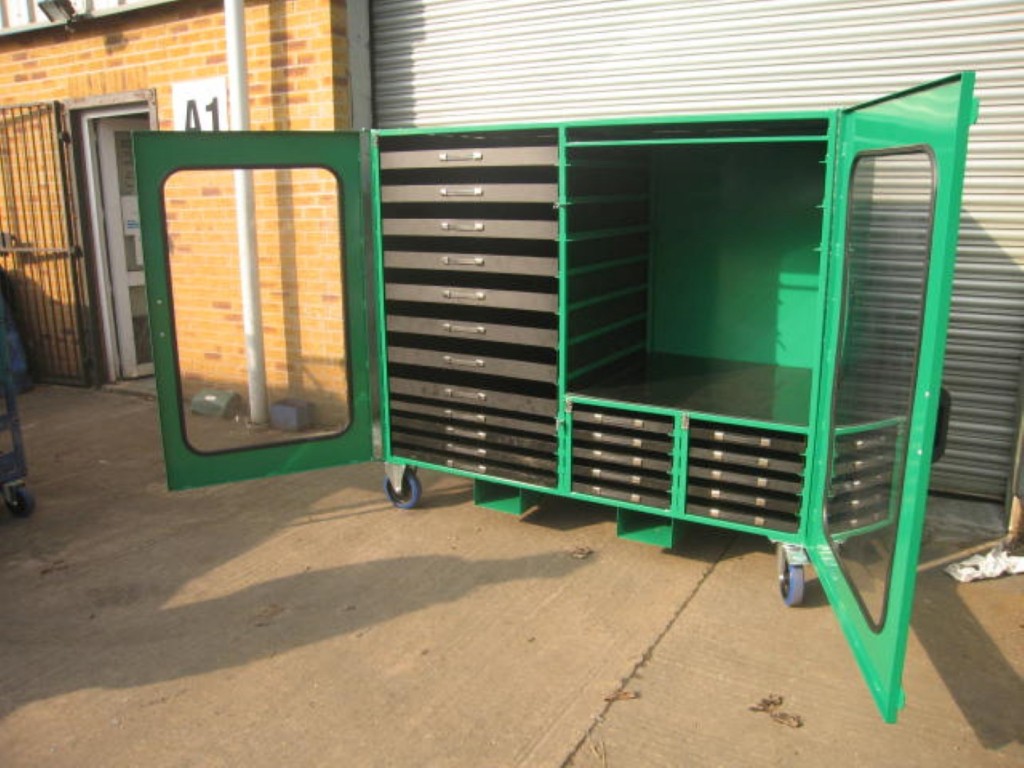

02 Module Wardrobe

The 02 module wardrobe is a kitting solution that has been developed for a midland based aerospace OEM for use with their marine gas turbine engine.

The marine engine base is built in Derby and then shipped to Bristol for completion.

This module wardrobe kitting solution transports components in a non-metal to metal environment keeping them secure during transportation. The layout of the trolley allows flexible kitting across a number of product groups.

The framework is manufactured from a thin walled box section to provide an optimum strength vs. weight solution.

The doors are hinged so that they can fold all the way back to reduce the footprint of the trolley when being used. The doors feature polycarbonate panels to improve visibility and are fixed in place using a bezel system for higher rigidity.

The design features 23 off fully welded high-density polyethylene drawers. All drawers have a 3mm thick rubber inlay in the base

The trolley is assembled with 4 off 200mm castors with blue elastic tyres and black plastic centres, 2 off swivel with brakes and 2 off fixed will enable the unit to be manoeuvred easily. The solution also features fork lift truck pockets for lifting.

The trolley will also have drop down handles and door handles and will be fitted with a Go/No indicator.

To provide a durable hard wearing finish the unit has been powder coated in a green colour.

Approximate overall size- 1650mm (H) x 880mm (D) x 1920mm (W).

Acres Drawing Number: AD-108-2013-02-7

Quantity required: 2 Units
