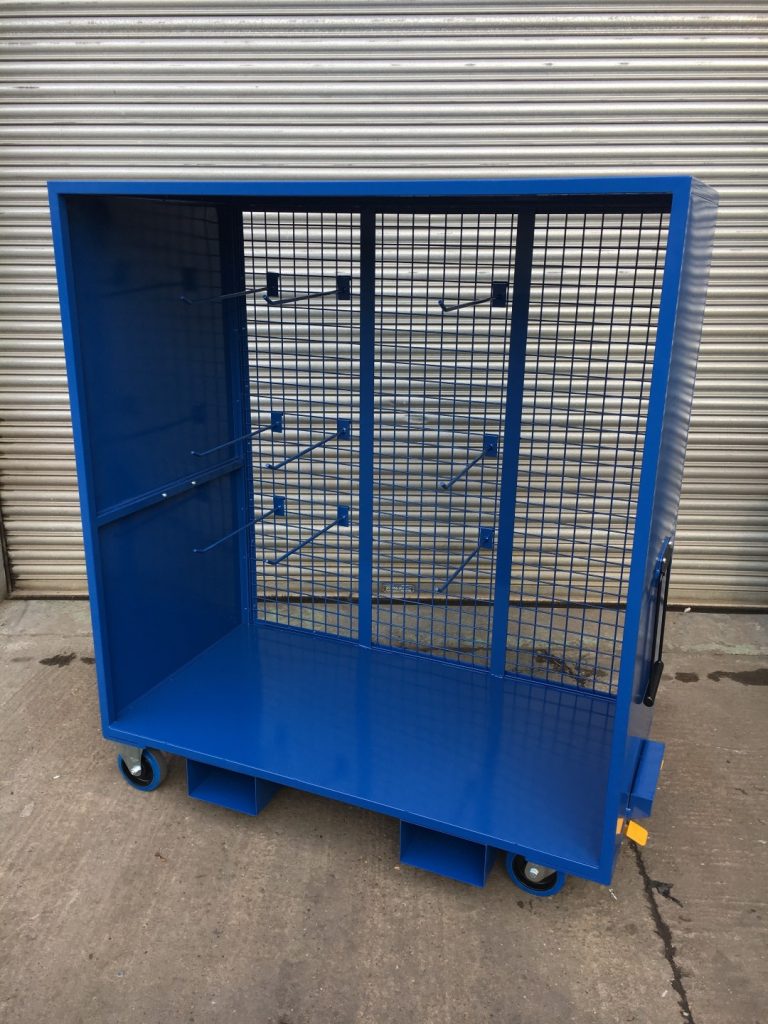

Panel Trolley

Drawing Number: AD-1161-2016-10-1


Panel Trolley – REF 2016-09-12945/7794

The Panel Trolley has been designed and manufactured for a local Aerospace OEM for use on their site in Germany for transporting aerospace components to the build line. This kitting solution is a variant of our standard panel trolley design which provides a flexible kitting option for transporting prepackaged components keeping them secure during transportation.

The frame work is manufactured from a thin walled box section to provide an optimum strength vs weight solution. The design features mild steel roof and side panels and a large gauge weld mesh back panel to allow for a series of hooks to be positioned where required.

The trolley is assembled with 4 off 160mm castors with blue elastic tyres and black plastic centres. 2 off castors are fixed and 2 off castors feature an an upgraded, easy to operate braking mechanism. The design also features fork lift truck pockets for lifting and a drop down handle to one end.

The trolley has been powder coat finished in BS 4800 20-D-45 Blue to give a hard wearing durable finish.

Approximate overall size- 1750mm (H) x 740mm (D) x 1620mm (W).

Required Quantity: 2 off

Acres Reference – AD-1161-2016-10-1
