PFM Tray Racks

Design and Manufacture of PMF Tray Racks

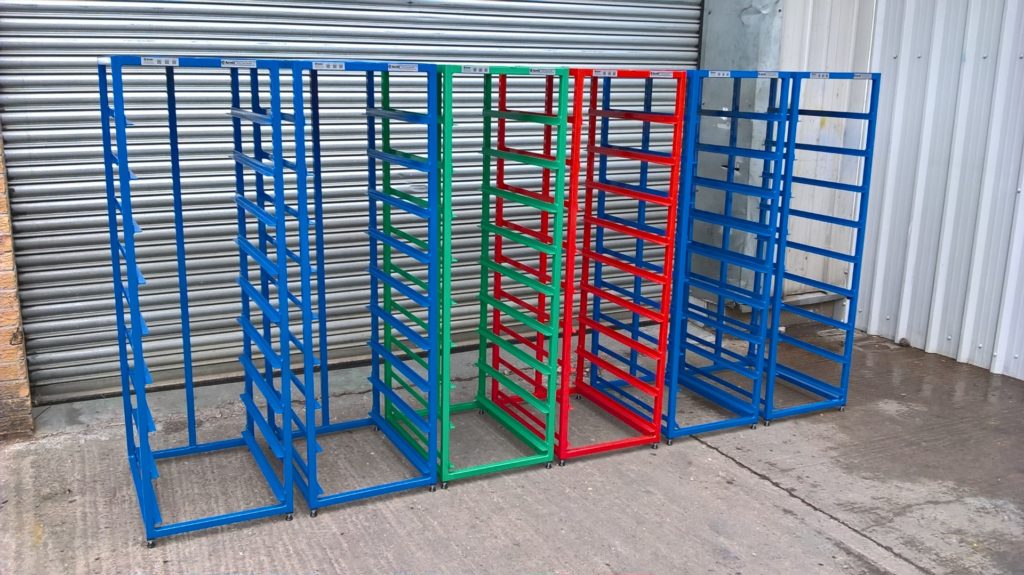

This design features single racks that bolt together to allow different configurations.

Racks can be colour coded to suit parts being stored, using powder coating to provide a hard wearing, long lasting finish.

These racks are specifically manufactured to accommodate 400mm x 600mm x 75mm euro boxes
Fabricated from 25mm x 25mm x 3mm box section and angle for the main framework.
Approximate overall size – 550mm (W) x 610mm (D) x 1500mm (H)
