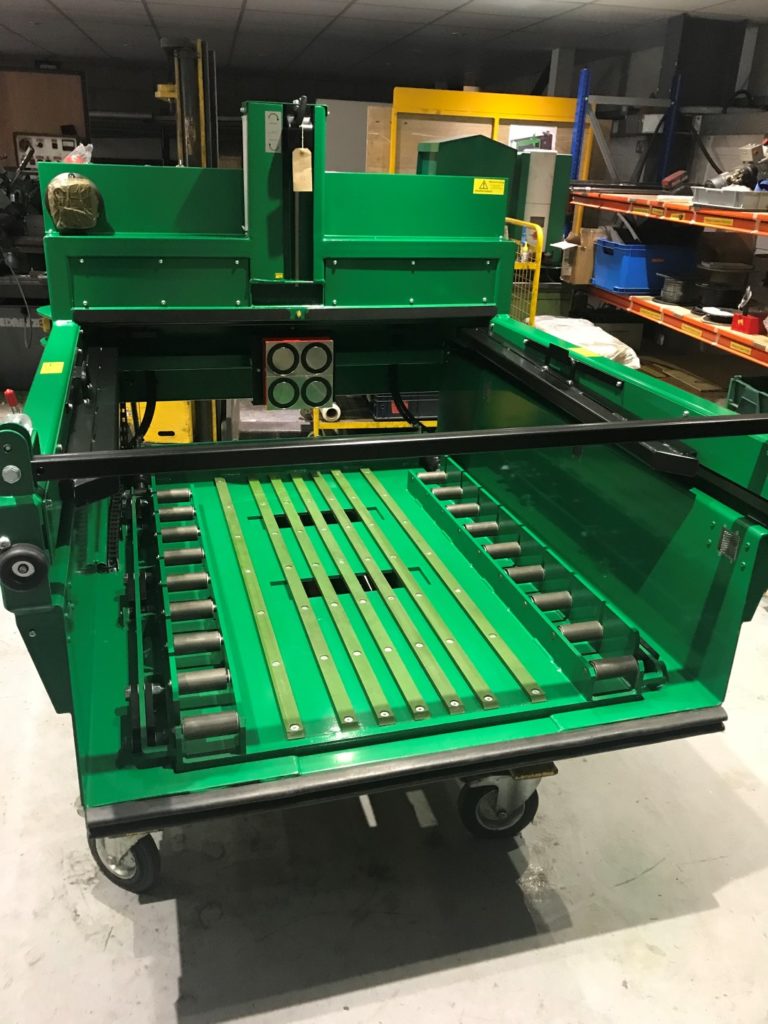

PU 1250 x 1000 Dual Height Special

Drawing Number: AD-1338-2017-09



As part of an ongoing relationship with Hoppecke Batterien, Acres produce a number of bespoke fork-truck battery changing units to suit customer requirements. Our product has improved incrementally over the years giving our designers and fabricators a wealth of experience to tackle almost any request.

The PU 1250 x 1000 Dual Height Special is fixed to a PPT (Powered Pallet Truck) providing a fast and efficient mobile battery changing solution for 24 hour warehouse operations. The PU is powered by a hydraulic power pack which, in partnership with a pair of powerful magnets exchanges batteries between fork trucks and battery charging racks.

Acres are currently exporting custom machines to Germany, France, Belgium, Spain, Poland, Holland, Slovakia, Abu Dhabi, Dubai, South Africa and China as well as serving the UK.

For more information about the Hoppecke battery changing unit see: The trak® Xchange PU.

Design Scope:

Destination:
Hoppecke Belgium

Battery Details:
Battery 1: 1028mm x 711mm x 784 mm
Battery 2: 1028mm x 855mm x 784 mm
Battery 3: 835mm x 634mm x 784 mm
Battery 4: 1223mm x 427mm x 784 mm
Battery 5: 799mm x 217mm x 798 mm

PPT Details:
Outside fork dimension = 680mm
Fork dimension = 188mm
Lowered fork height dimension = 85mm
Fork length dimension = 1600mm
PPT Lift = 120mm

Roll Off Height:
Minimum Roll off heights Requested = 110mm
Maximum Roll off height Required = 333mm
Acres to set minimum roll off to = 120mm

Additional Features:
Additional 3 x proximity switch and reflector.
Interlocking battery catch.
External contact relay to connect to the PPT.
System status indicators.
Laser pointer.
PSL code switch.
Yellow label around the emergency stop button.
Gate on the front with an interlock switch.

Colour: RAL 6029 Green
