Shaft Storage Trolley

Drawing Number: AD-1444-2018-03



Shaft Storage Trolley

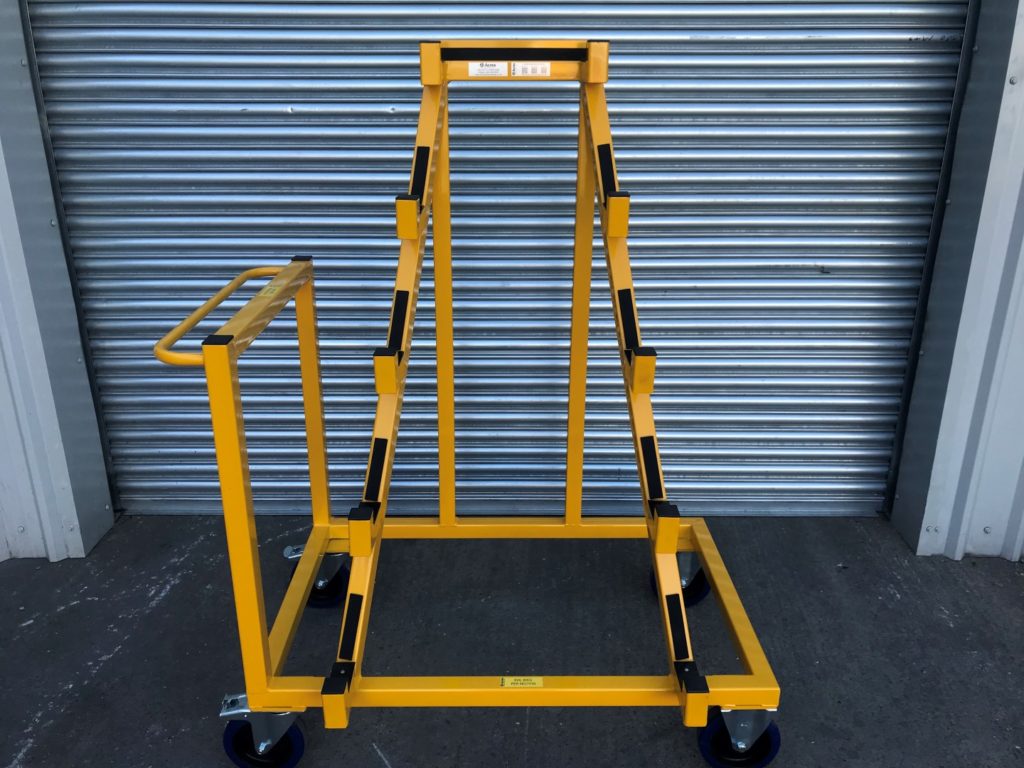

The shaft storage trolley has been designed and manufactured for overhaul, maintenance and refurbishment of railway rolling stock company. The trolley will allow for different lengths of shaft to be stored in one place.

The trolley has been manufactured from 50mm x 50mm box section with support arms to hold the frame in place. The box section has a thin wall to provide an optimum strength vs weight solution.

The arms on the trolley will feature plastic pads to prevent metal to metal contact with the frame.

The trolley has been assembled with 4 off 200mm diameter castors, 2 swivel with brake castors and 2 fixed castors which feature an elastic rubber tyre on nylon centred wheel. The unit has swivel with break castors to improve manoeuvrability for the operators.

The trolley has been powder coated in Yellow RAL 1003 to provide a hard wearing, long lasting finish.
