Snag Of The Week Boards

Drawing Number: AD-1270-2017-06


Snag Of The Week Boards – REF 2017-05-13715

The Snag Of The Week Boards have been designed and manufactured for a Midlands based aerospace company for use within their build line.

The boards are manufactured from a 1.6mm mild steel formed sheet. The bend at the top is so that the boards can hook on to existing board locators. The board also features a back stop to stop the boards from bouncing or bending when mounted.

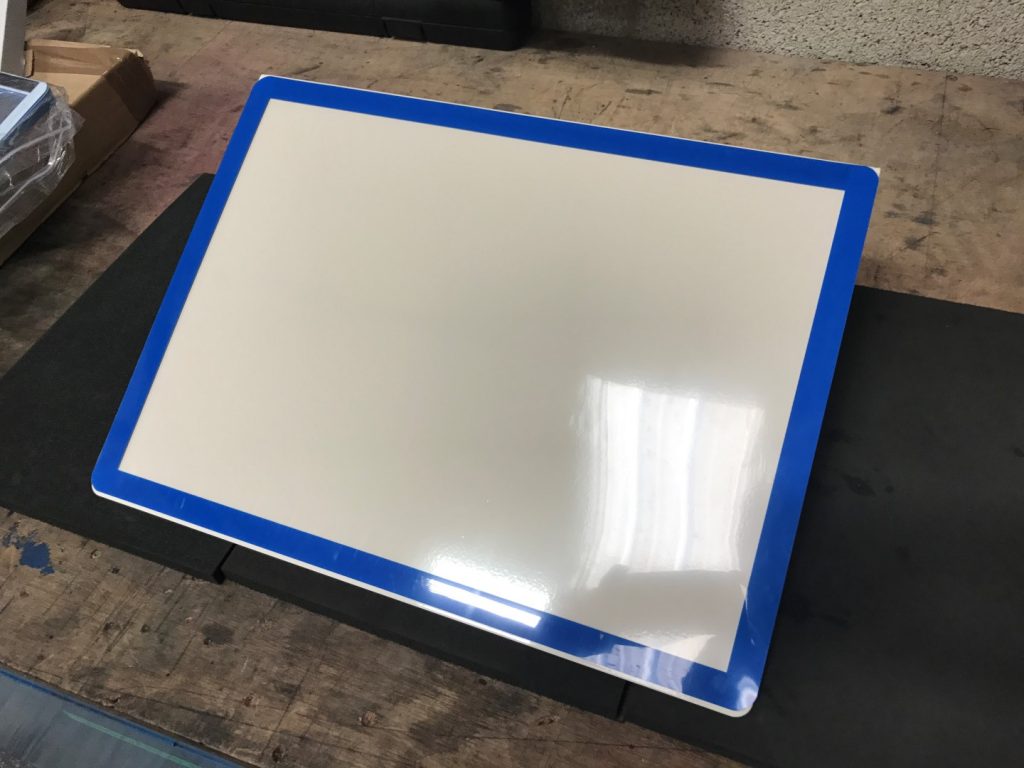

The board features an A3 magnetic wallet for the information sheets to go in. These feature a blue surround which was requested by the customer.

The boards have been powder coated in cream RAL 9001 to provide a hard wearing, long lasting finish.

Approximate overall size – 400mm (H) x 450mm (W)

Quantity: 20 off

Acres Reference – AD-1270-2017-06
